Airflow Mode Actuator And Climate Control Unit Connector End View

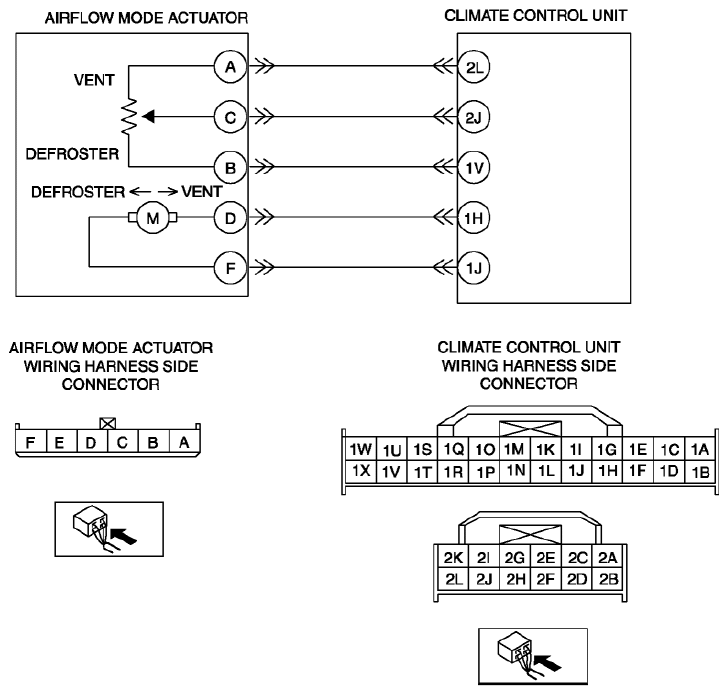

Fig 1: Airflow Mode Actuator And Climate Control Unit Connector End View

G08150853

Courtesy of MAZDA MOTORS CORP.
