Reverse Idler Gear Components Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

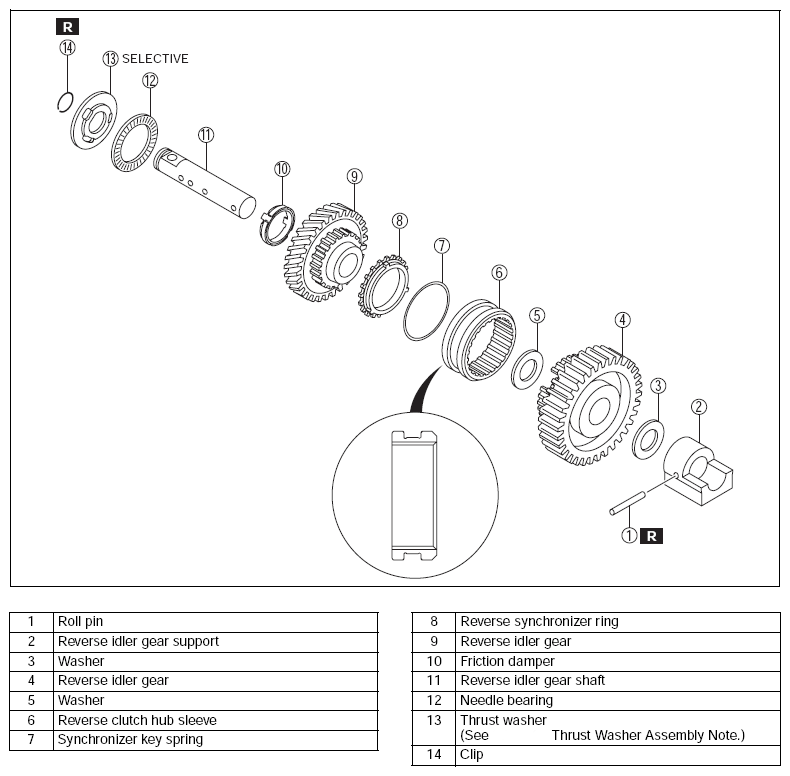

    Fig 1: Identifying Reverse Idler Gear Components
    G08803687
