Differential PREINSPECTION

  1. Measure the backlash of the side gear.
    • If not within the specification, replace parts if necessary.

    Differential side gear backlash

    0.050-0.150 mm {0.0020-0.0059 in}

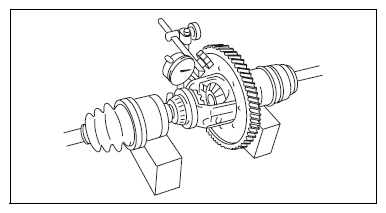

    Fig 1: Measuring Backlash Of Side Gear
    G08803730
