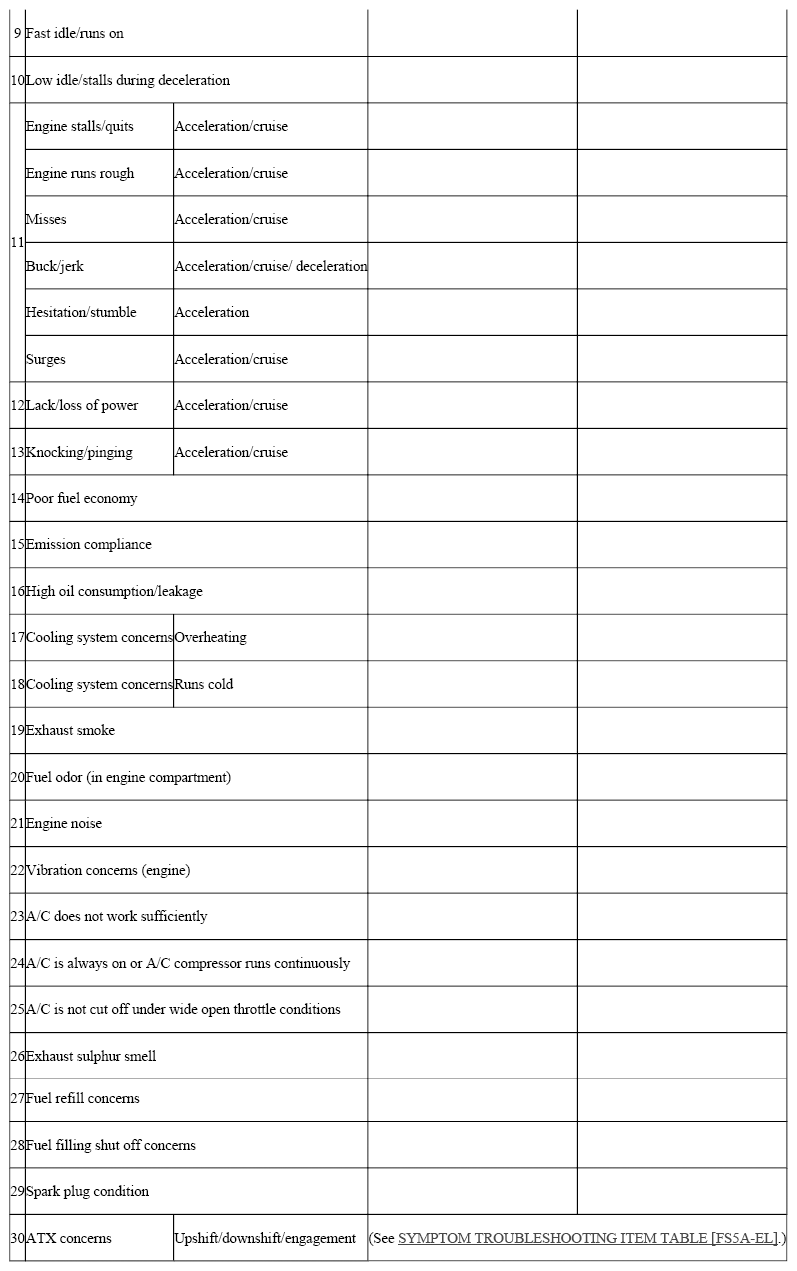

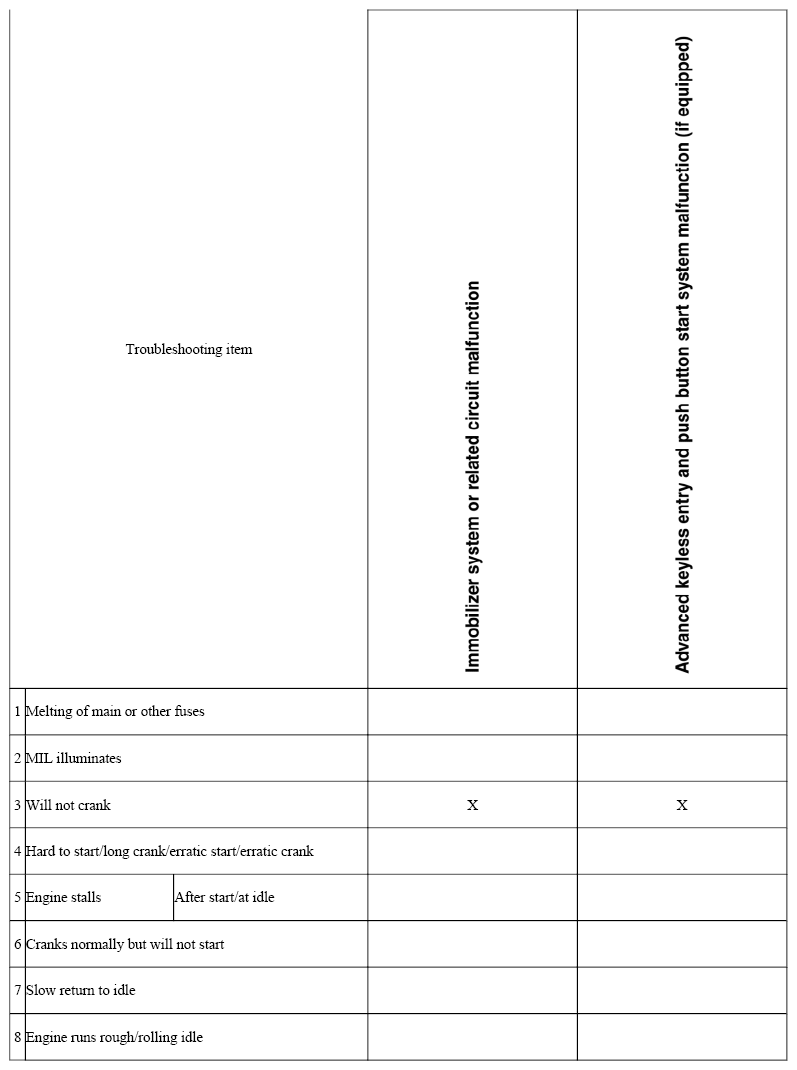

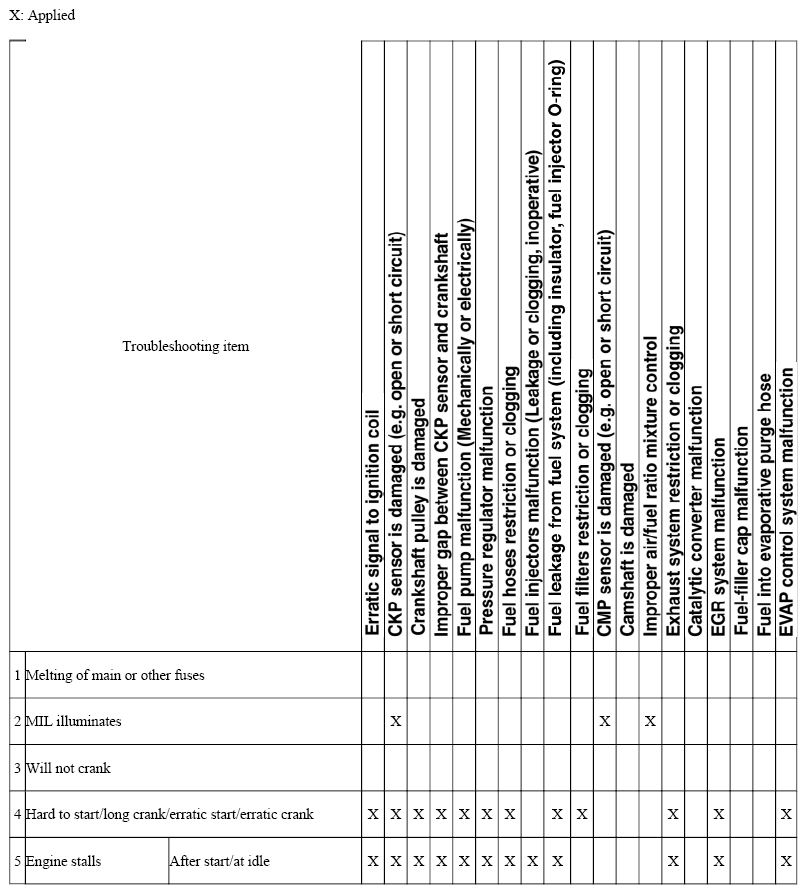

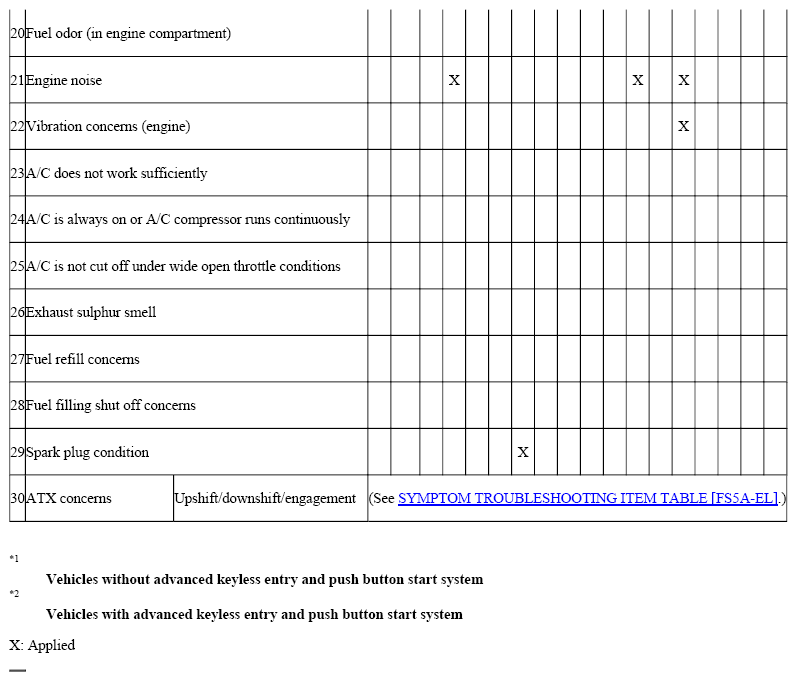

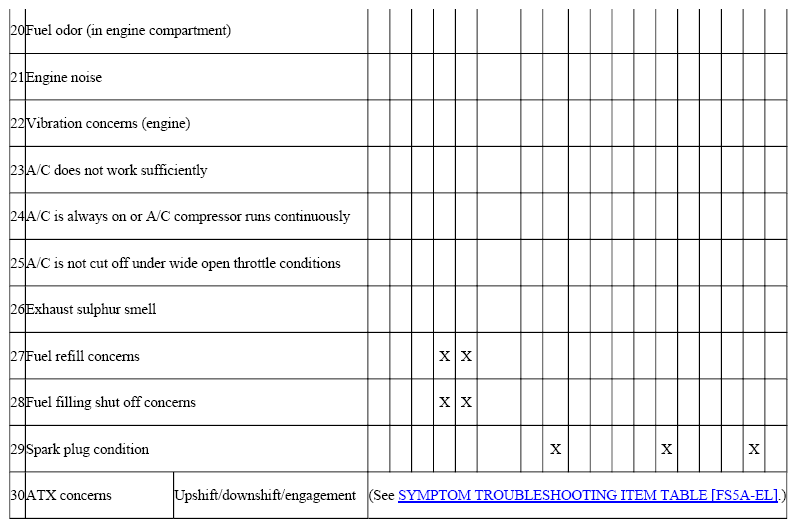

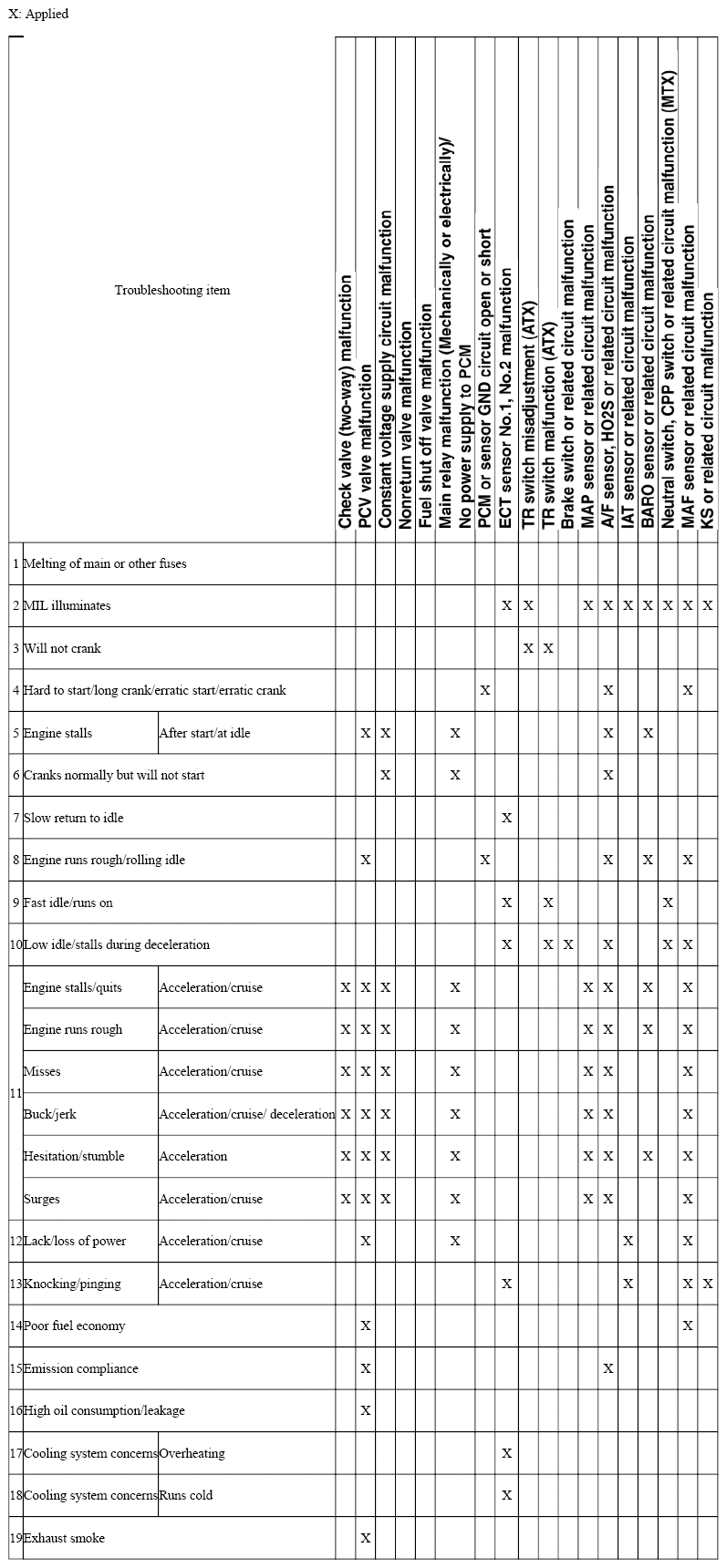

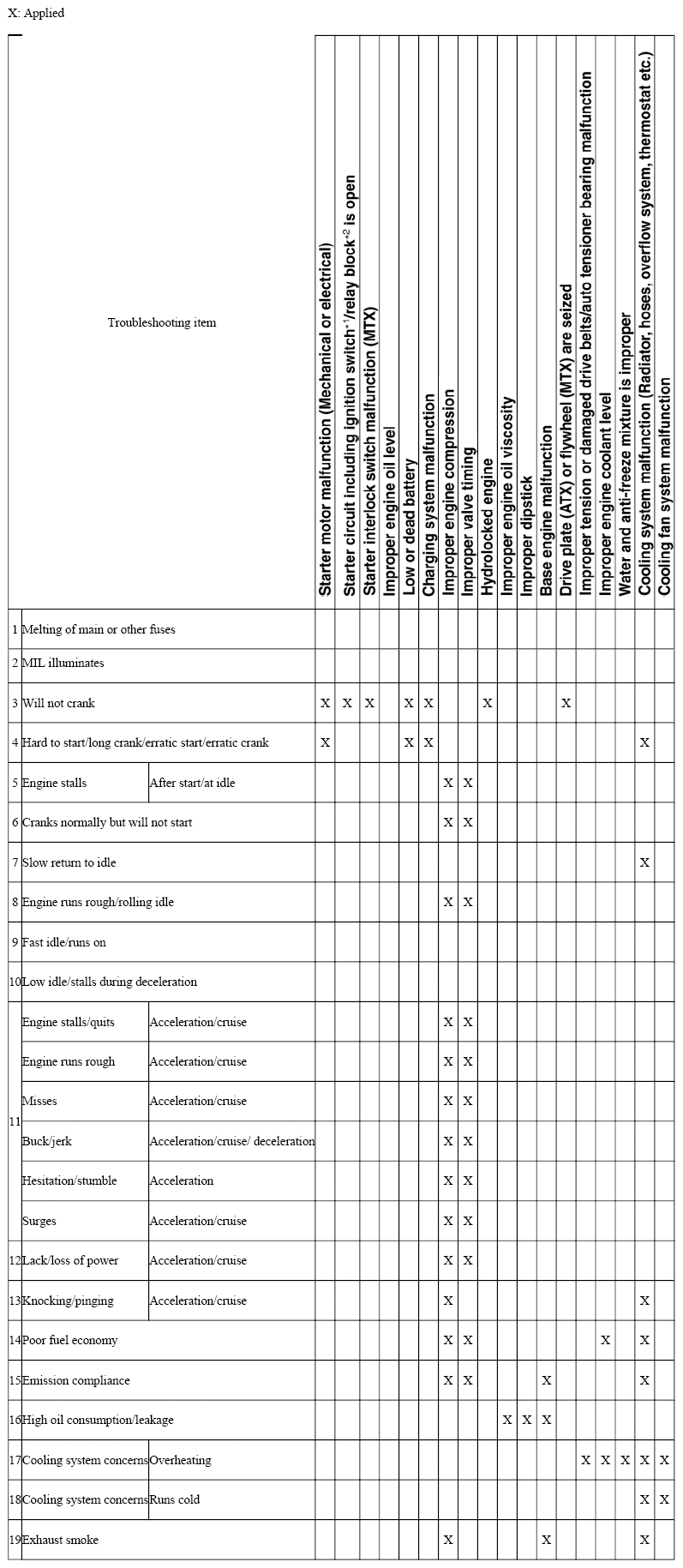

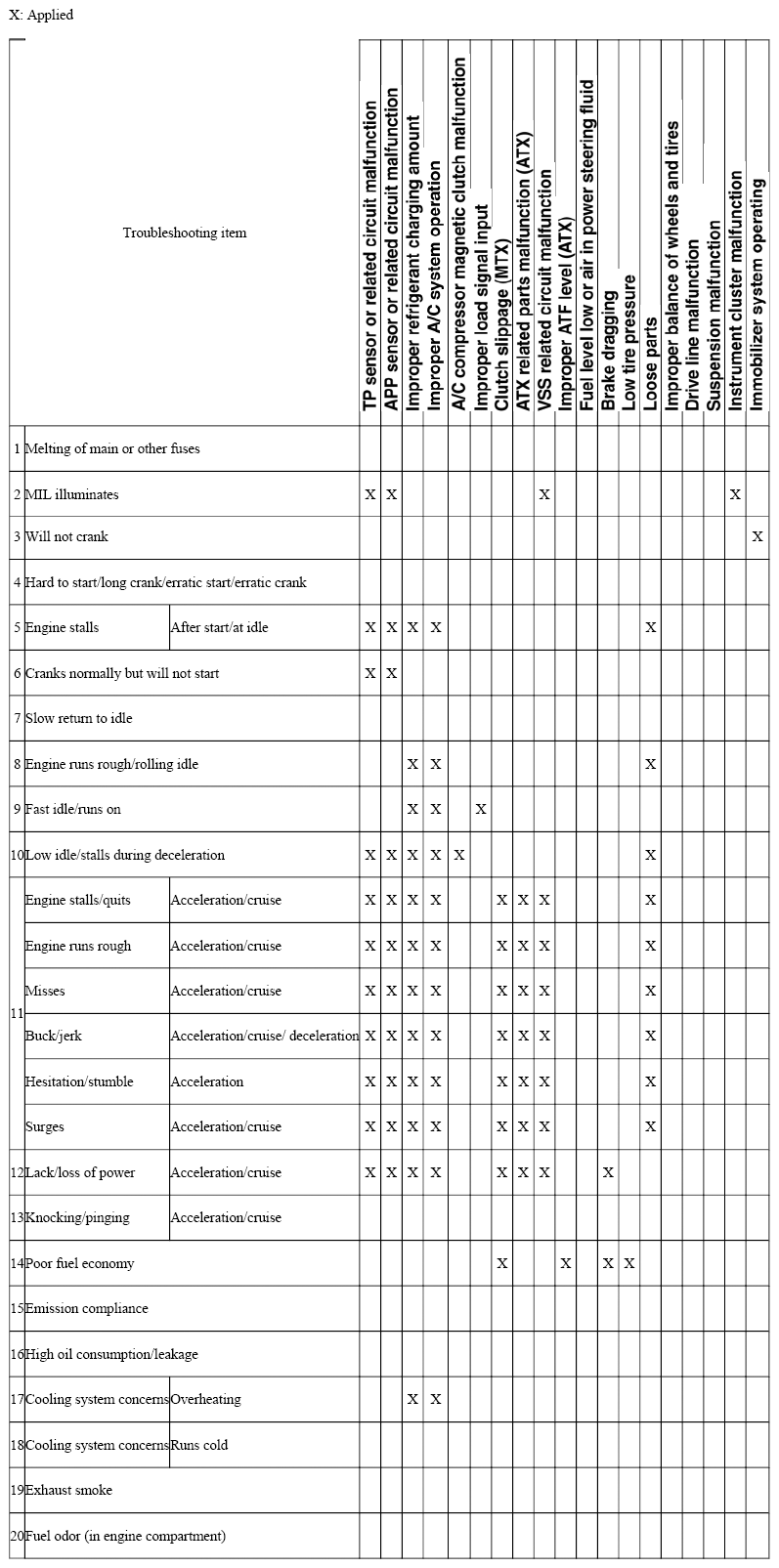

Quick Diagnostic Chart

X: Applied

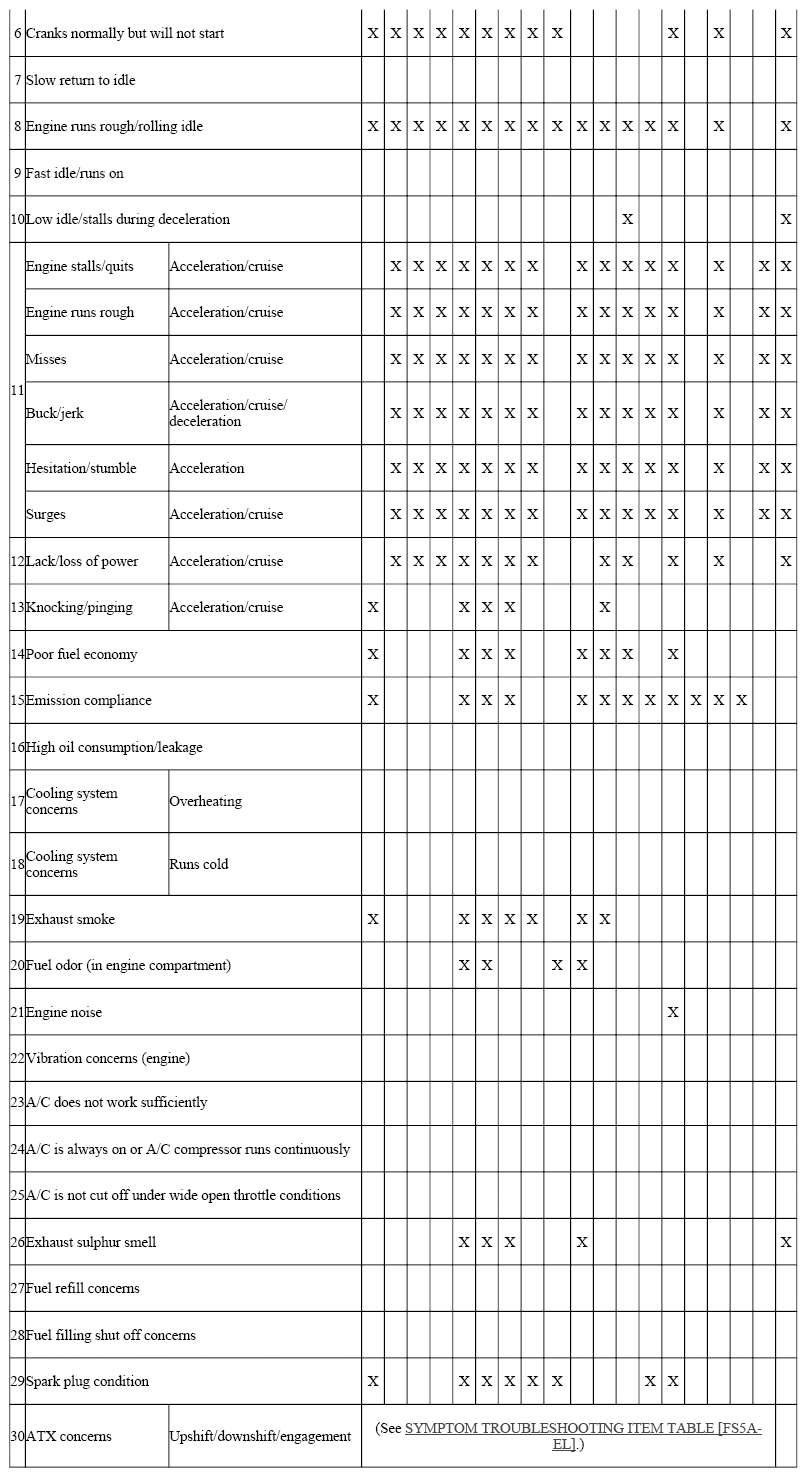

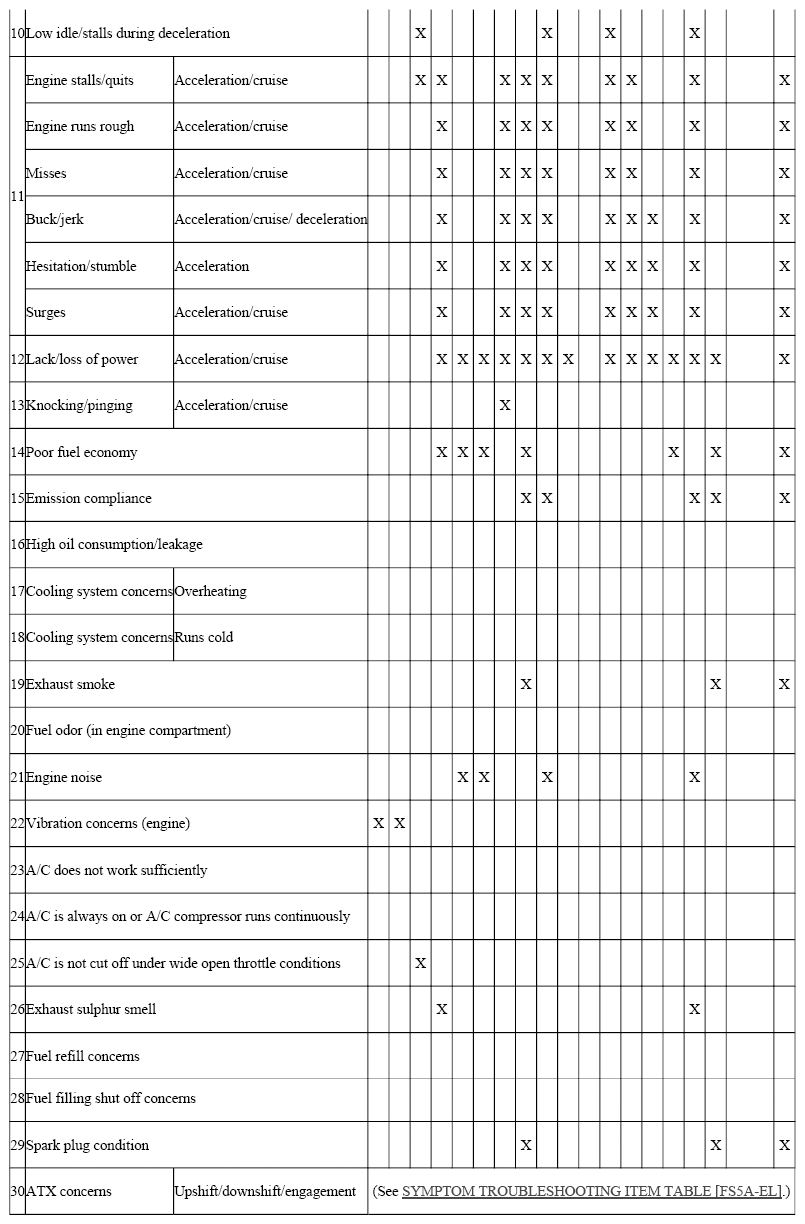

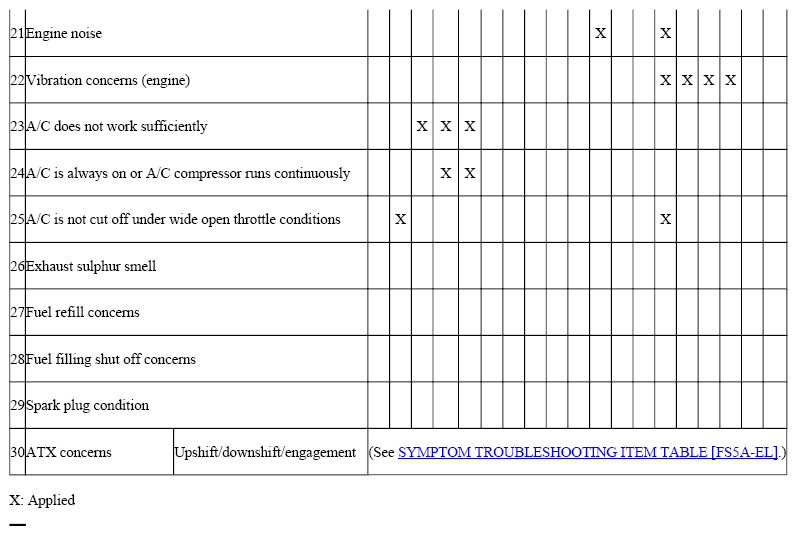

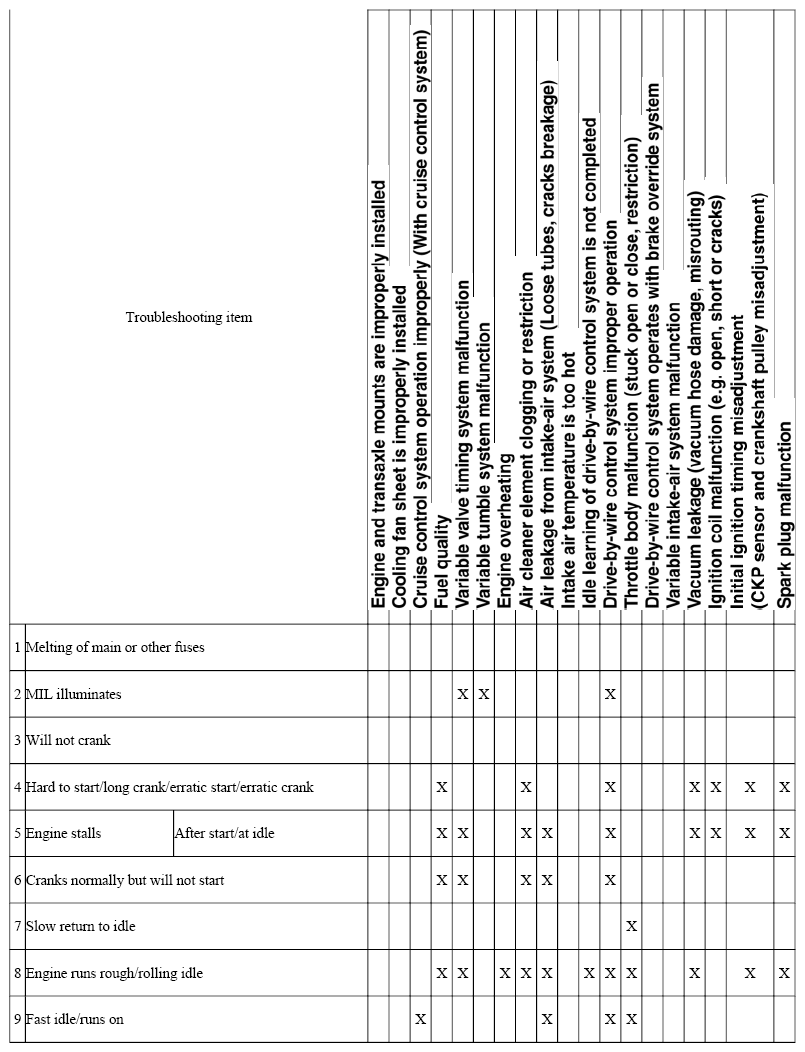

Fig 1: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (1 Of 12)

Fig 2: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (2 Of 12)

Fig 3: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (3 Of 12)

Fig 4: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (4 Of 12)

Fig 5: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (5 Of 12)

Fig 6: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (6 Of 12)

Fig 7: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (7 Of 12)

Fig 8: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (8 Of 12)

Fig 9: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (9 Of 12)

Fig 10: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (10 Of 12)

Fig 11: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (11 Of 12)

Fig 12: Quick Diagnostic Chart [MZR 2.0, MZR 2.5] (12 Of 12)
