APP sensor No.2 signal

Accelerator pedal released

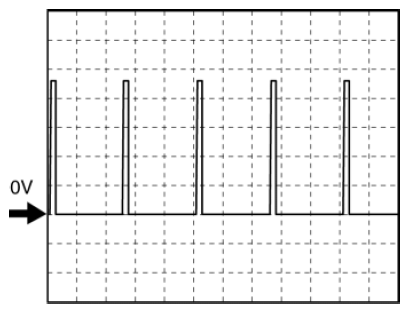

Fig 1: APP Sensor No.2 Signal Waveform Graph - Accelerator Pedal Released

Accelerator pedal depressed

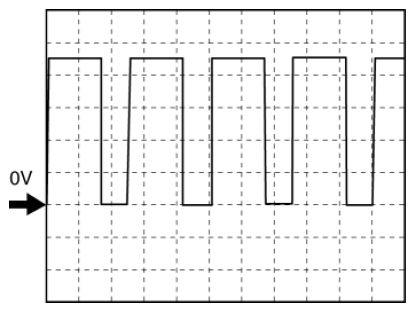

Fig 2: APP Sensor No.2 Signal Waveform Graph - Accelerator Pedal Depressed

PCM terminals

• 1X(+)-body ground(-)

  Oscilloscope setting

• 2.5 V/DIV (Y), 2 ms/DIV (X), DC range

  Vehicle condition

• Switch the ignition to ON.
