Liftgate Latch Switch Inspection

WARNING: This page is about a different car, the 2013 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    4. Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  3. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

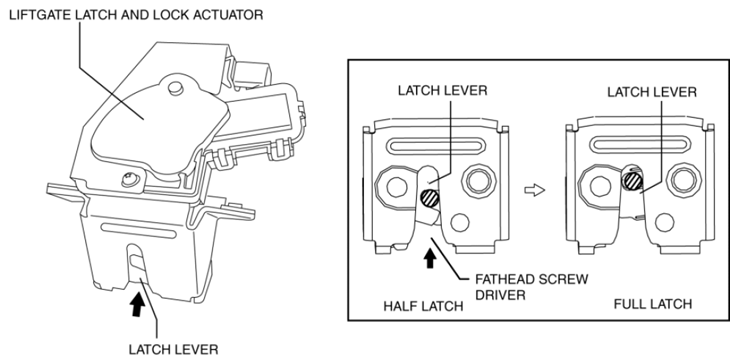

    Fig 1: Pressing Latch Using Flathead Screwdriver
    G08158860
  4. Verify that the continuity is as indicated in the table.
    Fig 2: Liftgate Lock Actuator Terminal Continuity Chart
    G08158861
    • If not as indicated in the table, replace the liftgate latch and lock actuator
    Fig 3: Liftgate Latch Switch Circuit And Terminal Identification
    G08158862
