Quick Diagnostic Chart

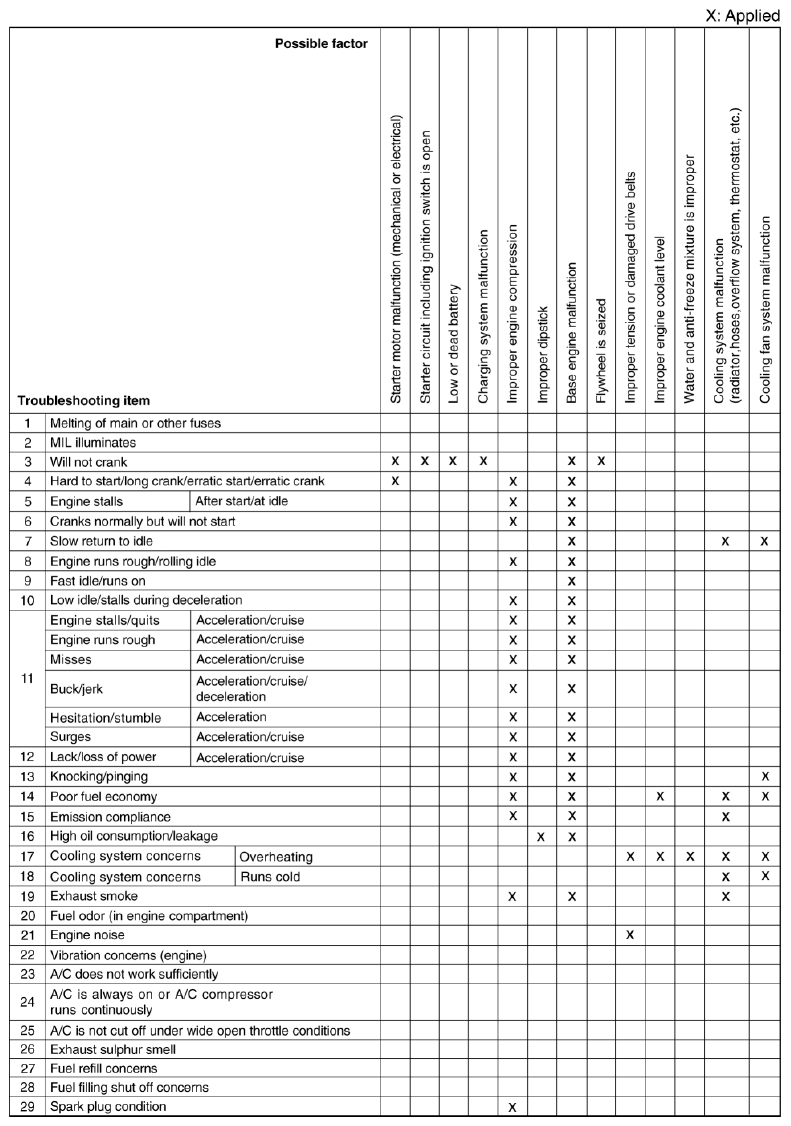

Fig 1: Quick Diagnostic Chart [MZR 2.3 DISI Turbo] (1 Of 7)
G08156366

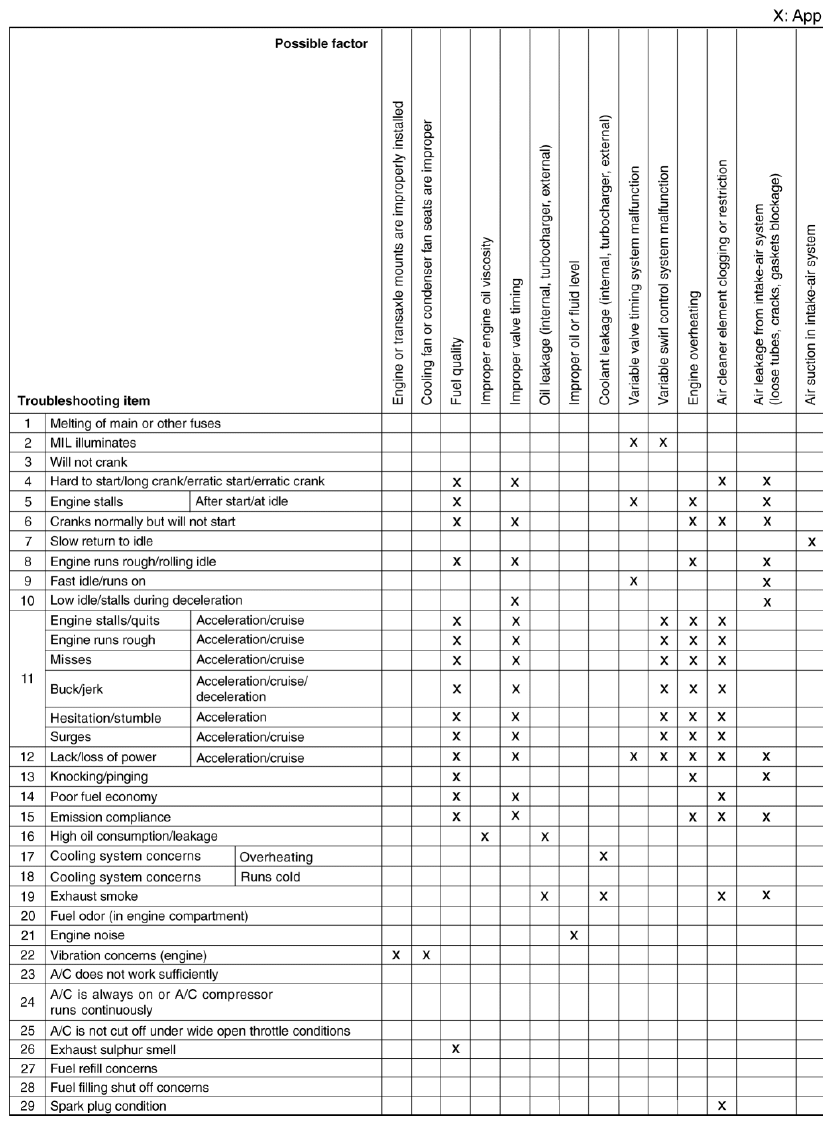

Fig 2: Quick Diagnostic Chart [MZR 2.3 DISI Turbo] (2 Of 7)
G08156367

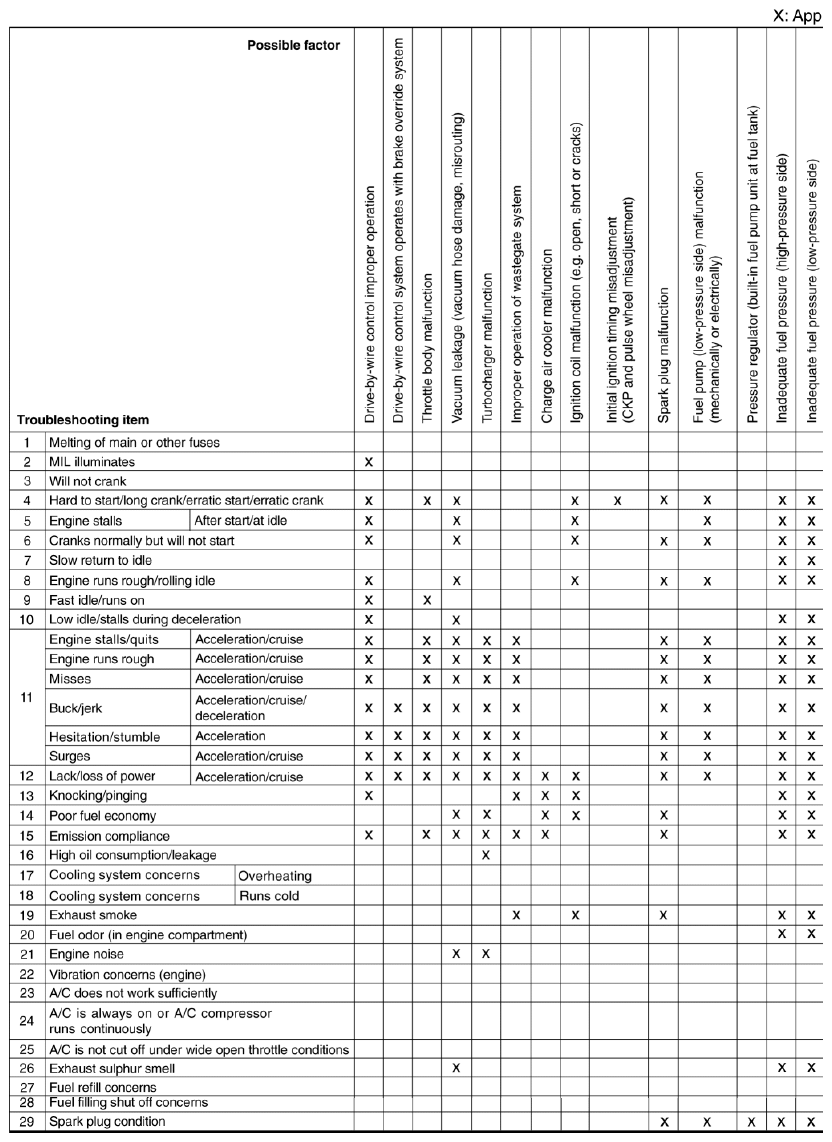

Fig 3: Quick Diagnostic Chart [MZR 2.3 DISI Turbo] (3 Of 7)
G08156368

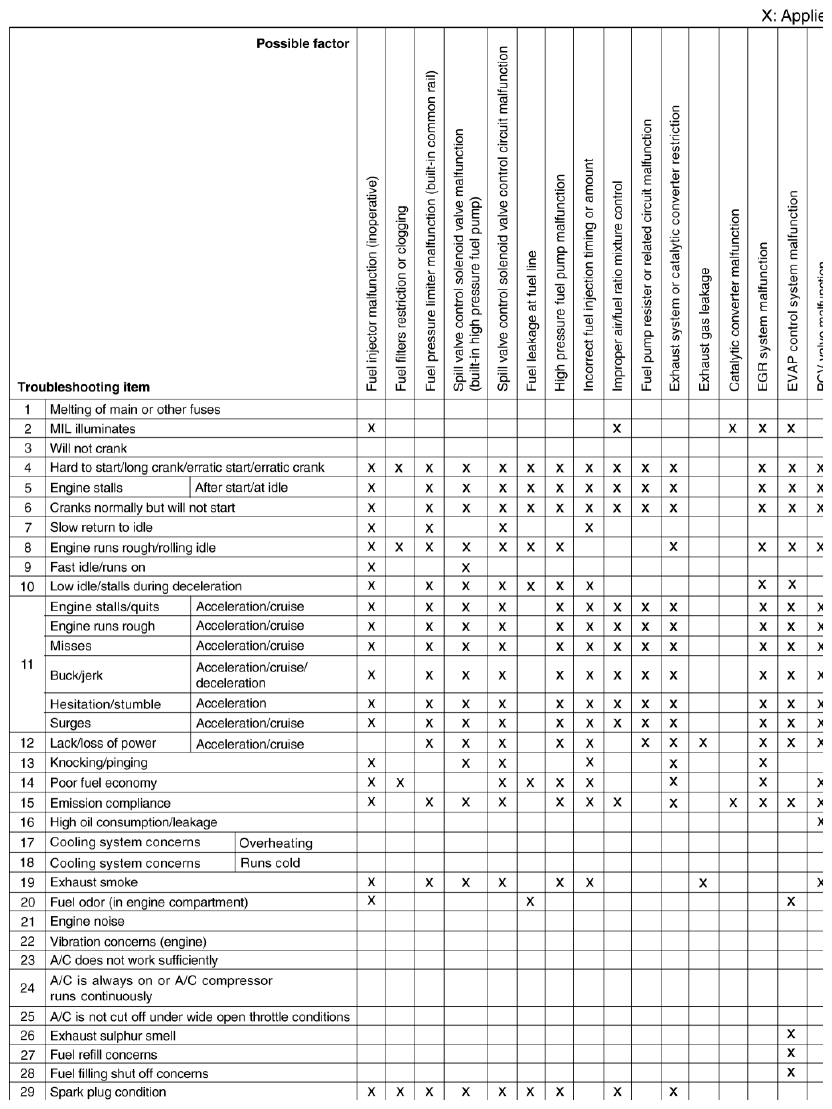

Fig 4: Quick Diagnostic Chart [MZR 2.3 DISI Turbo] (4 Of 7)
G08156369

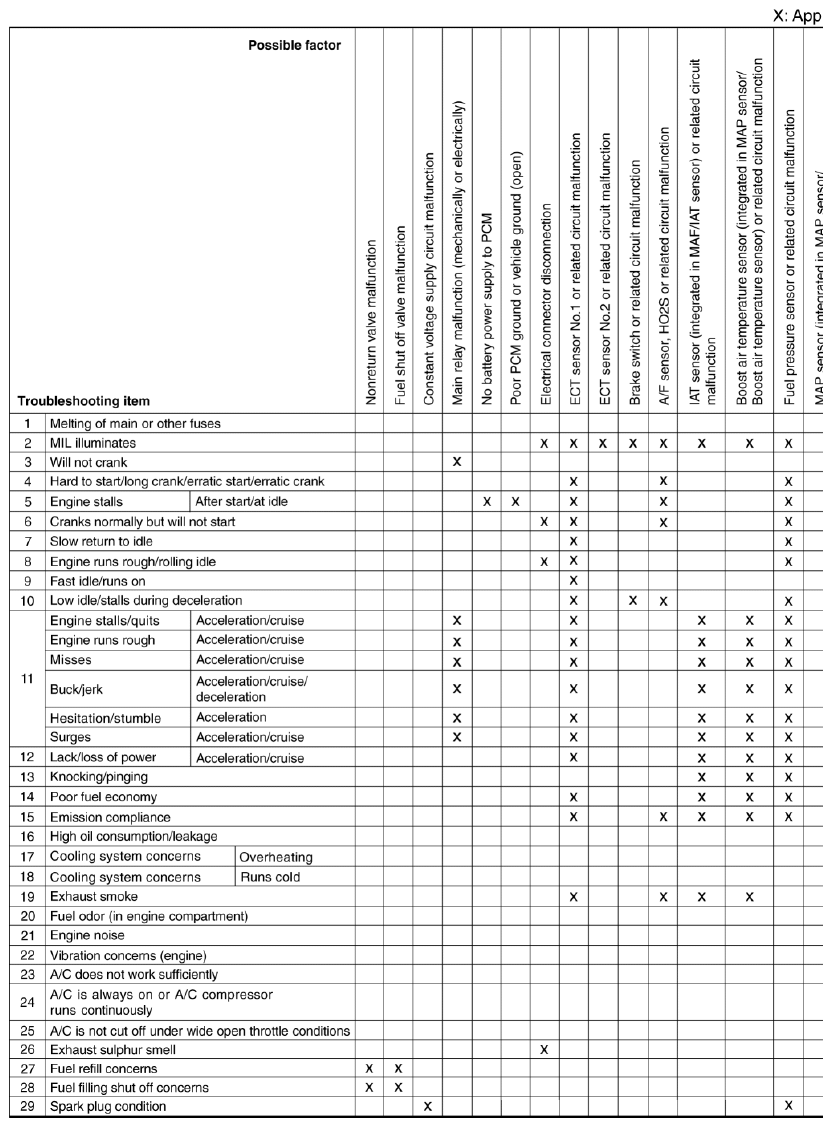

Fig 5: Quick Diagnostic Chart [MZR 2.3 DISI Turbo] (5 Of 7)
G08156370

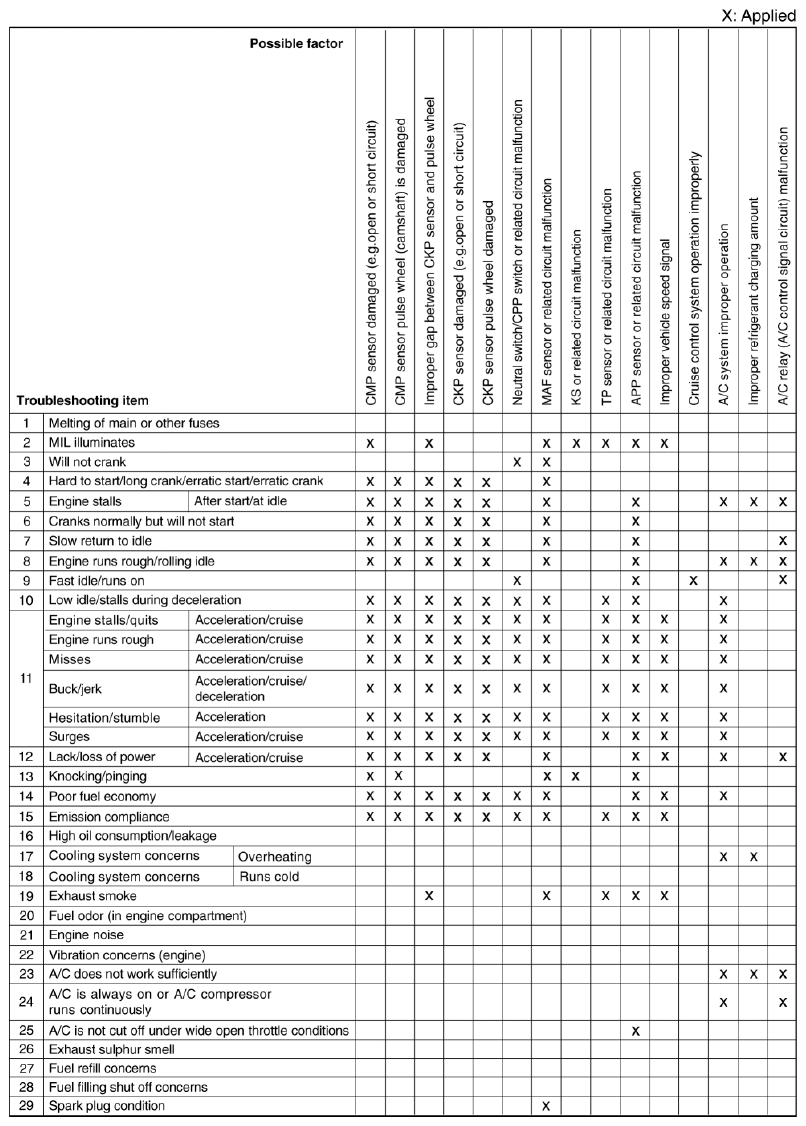

Fig 6: Quick Diagnostic Chart [MZR 2.3 DISI Turbo] (6 Of 7)
G08156371

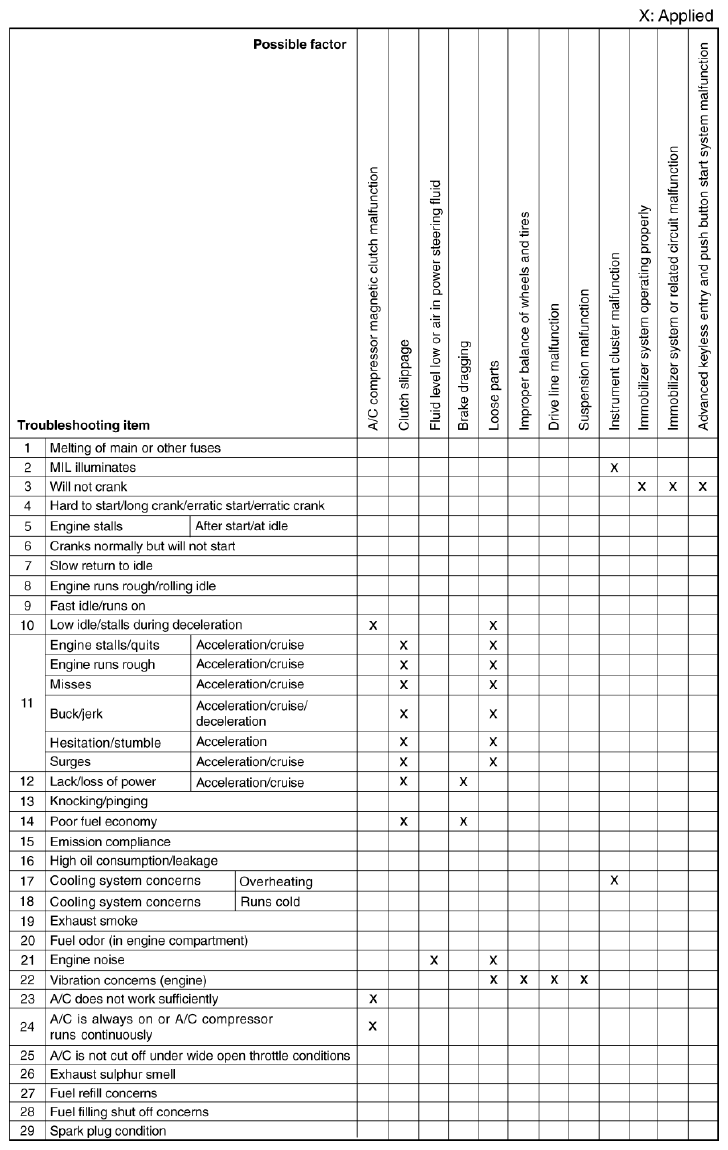

Fig 7: Quick Diagnostic Chart [MZR 2.3 DISI Turbo] (7 Of 7)
G08156372
