OCV signal
OCV signal

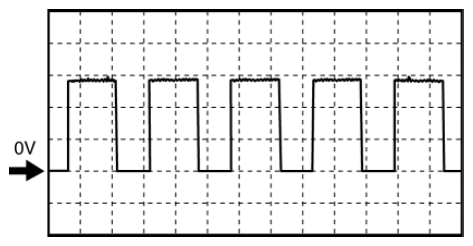

Fig 1: OCV Signal Waveform Graph
PCM terminals
2AF (+)-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Racing
