Advanced Keyless Entry And Push Button Start System Only

Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Remove the following parts:
- Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
- Console (See CONSOLE REMOVAL/INSTALLATION .)
Set the hood release lever out of the way. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
Disconnect the connector.

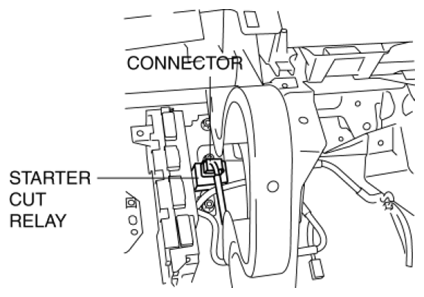

Fig 1: Identifying Starter Cut Relay And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the nut.

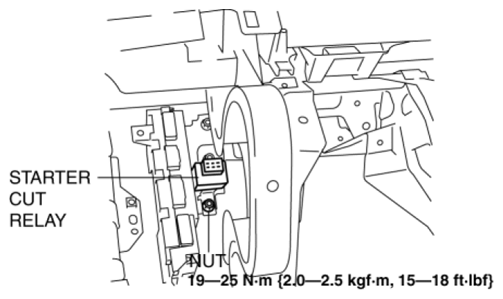

Fig 2: Starter Cut Relay And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the starter cut relay.
Install in the reverse order of removal.
