3 Mazdaspeed, 2.3L Eng VIN 4
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
On-Board Diagnostic [Advanced Keyless Entry System And Push Button Start System]
>>
On-Board Diagnostic Wiring Diagram [Advanced Keyless Entry System And Push Button Start System]
On-Board Diagnostic Wiring Diagram [Advanced Keyless Entry System And Push Button Start System]

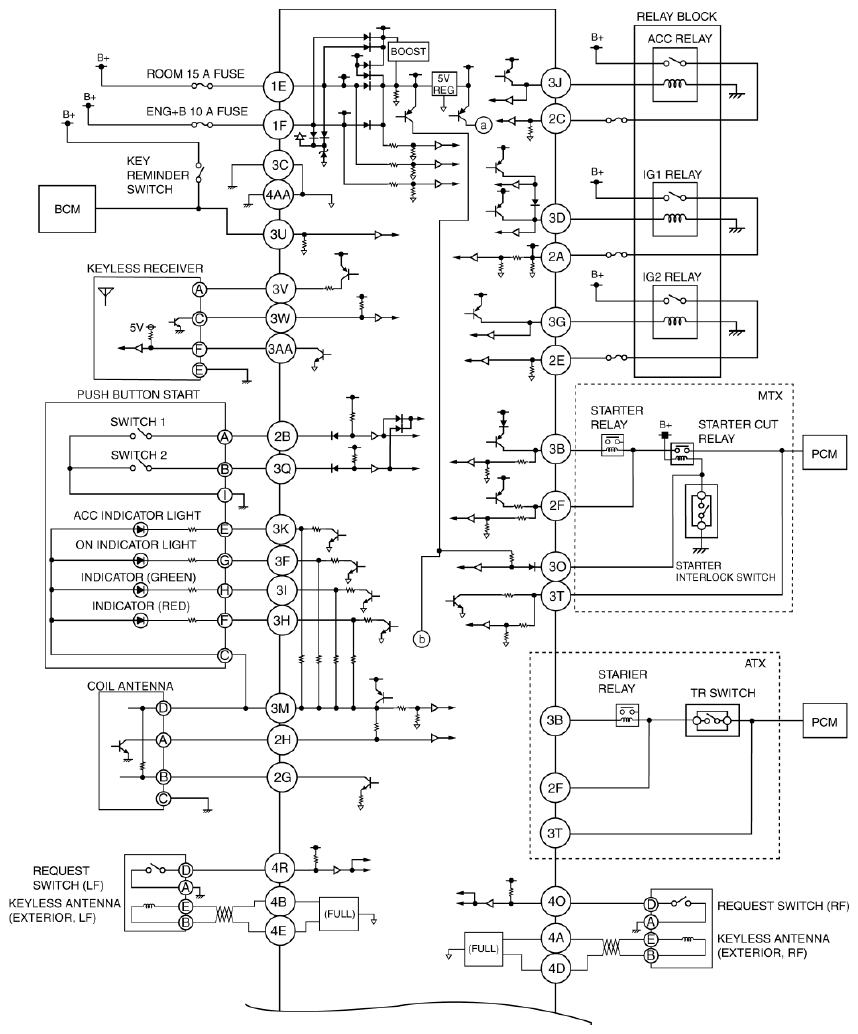

Fig 1: On-Board Diagnostic Wiring Diagram [Advanced Keyless Entry System And Push Button Start System] (1 Of 2)

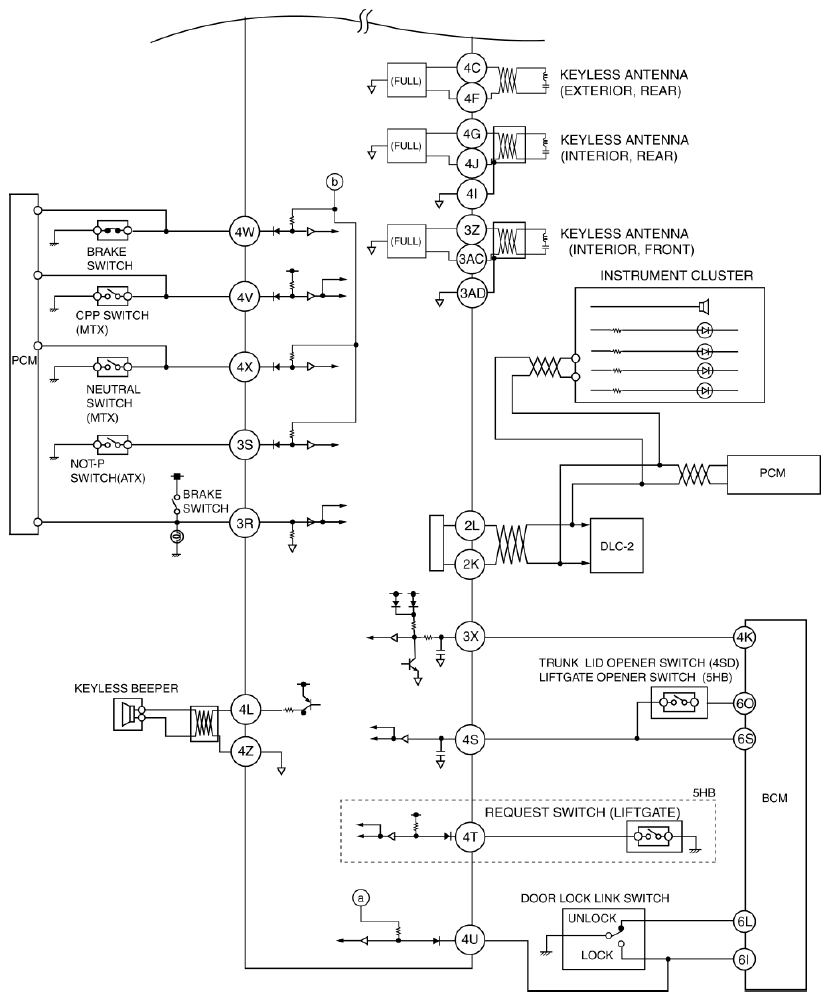

Fig 2: On-Board Diagnostic Wiring Diagram [Advanced Keyless Entry System And Push Button Start System] (2 Of 2)
