Main Cable Component Removal Note

  1. Working with two people, one person pushes the ends of the shift cable and selector cable (transaxle side) toward the inside of the vehicle, and at the same time, the other person pulls out the main cable component by pulling the ends of the shift cable and selector cable (shift lever side).

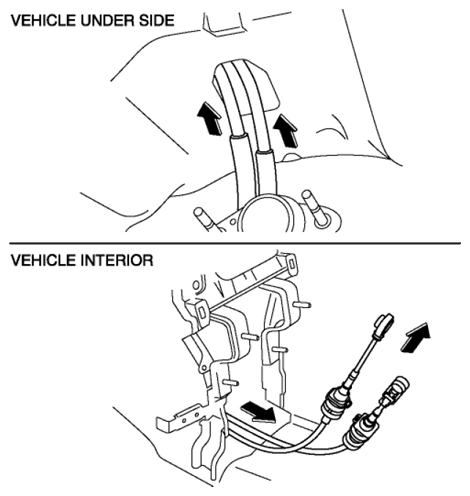

    Fig 1: Pulling Ends Of Shift Cable And Selector Cable (Shift Lever Side)
    G08095929
