Main Cable Component Installation Note

  1. Working with two people, one person pushes the ends of the shift cable and selector cable (shift lever side) toward the lower side of the vehicle from the inside, and at the same time, the other person pulls the ends of the shift cable and selector cable (transaxle side), and installs the seal plate.

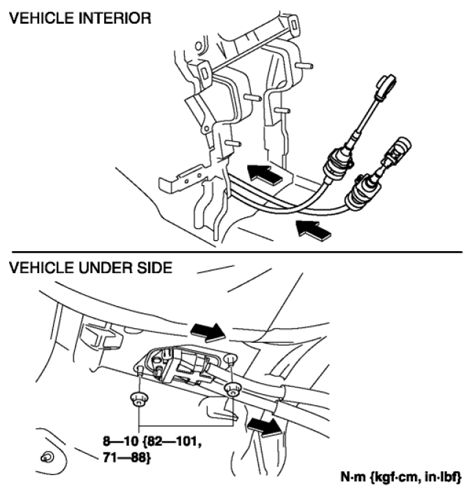

    Fig 1: Pulling Ends Of Shift Cable And Selector Cable (Transaxle Side)
    G08095930
