Selector Cable Adjustment

  1. Shift the selector lever to the P position.
  2. Loosen the nut at the selector cable end.
    Fig 1: Identifying Nut At Selector Cable End
    G08095946
  3. Verify that the manual shaft is in the P position.

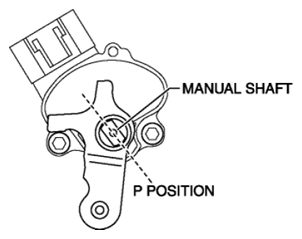

    Fig 2: Identifying Manual Shaft P Position
    G08095947
  4. Tighten the nut at the selector cable end.

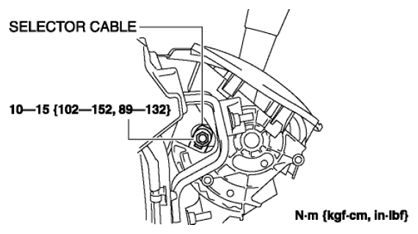

    Fig 3: Nut At Selector Cable End With Torque Specifications
    G08095948
