Inspection Using An Oscilloscope (Waveform Reference)
>>
CKP signal
CKP signal

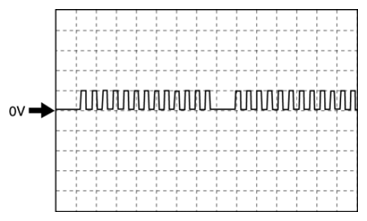

Fig 1: CKP Signal Waveform
PCM terminals
2Y(+)-Negative battery terminal (-)
Oscilloscope setting
5 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
idle (after warm up)
