Inspection Using An Oscilloscope (Waveform Reference)
>>
A/F sensor heater control signal
A/F sensor heater control signal

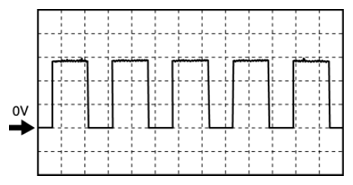

Fig 1: A/F Sensor Heater Control Signal Waveform
PCM terminals
2X (+)-Negative battery terminal (-)
Oscilloscope setting
5 V/DIV (Y), 50 ms/DIV (X), DC range
Vehicle condition
idle (after warm up)
