Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Removal/Installation
CAUTION:
- Neither the MAF nor the IAT sensor cannot be removed as a single unit. When replacing the MAF or IAT sensor, replace it together with the other sensor as a single unit.
- Disconnect the negative battery cable.
- Disconnect the MAF/IAT sensor connector.

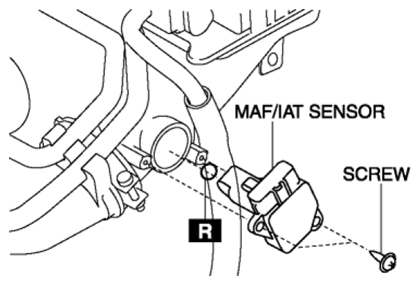

- Remove the MAF/IAT sensor.
- Install in the reverse order of removal.
