Clutch Pedal Position (CPP) Switch Inspection
- Verify that the CPP switch is installed properly.
- Disconnect the negative battery cable.
- Disconnect the CPP switch connector. (See CLUTCH PEDAL REMOVAL/INSTALLATION .)

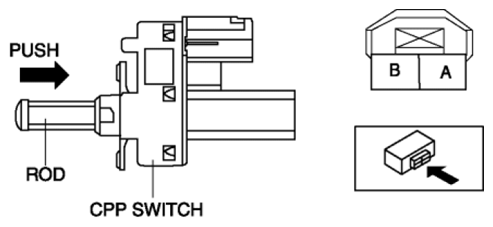

- Inspect for continuity between the CPP switch terminals using an ohmmeter.
- If not as specified, replace the CPP switch.
CONTINUITY REFERENCE CHART
| Measured condition | Clutch pedal position | Continuity |
|---|---|---|
| Rod pushed | Clutch pedal released | Continuity detected |
| Except above | Clutch pedal depressed | No continuity |
