Rear Side

  1. Disconnect the negative battery cable.
  2. Remove the sail inner garnish. (See SAIL INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the Rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the power window motor connector.
  5. Apply battery positive voltage and connect the ground to the power window motor terminals, and then inspect the power window motor operation.

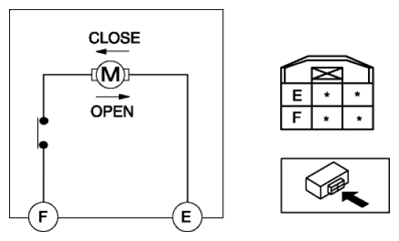

    Fig 1: Identifying Power Window Motor Connector Terminals - Rear Side
    G08107977
    • If the power window motor does not operate as indicated in the table, replace it.
Operation Terminal
E F
Open Ground B+
Close B+ Ground
