Rear Outer Handle Removal/Installation
>>
Outer handle bracket Installation Note
Outer handle bracket Installation Note
Hook the outer handle bracket tabs as shown in the figure.

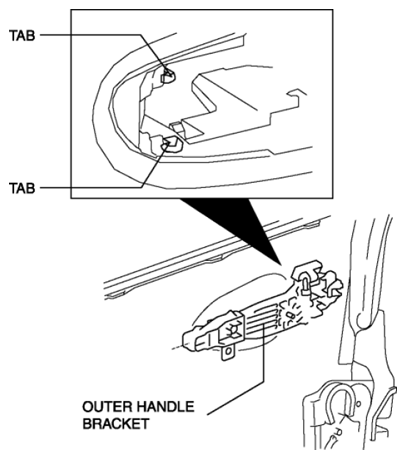

Fig 1: Identifying Outer Handle Bracket And Tabs
