No.6 Programming Procedure Due to Simultaneous Replacement of Immobilizer System-related Parts (PCM and Instrument Cluster): Procedure

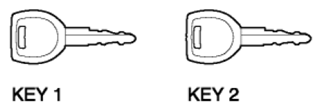

VALID KEY

Step	Procedure		Action after procedure
1	Refer to INSTRUMENT CLUSTER REMOVAL/INSTALLATION to perform instrument cluster replacement and configuration. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER CONFIGURATION .)	Go to the next step.
2	Refer to PCM REMOVAL/INSTALLATION [MZR 1.5] to perform PCM replacement and configuration. (See PCM REMOVAL/INSTALLATION [MZR 1.5] .) (See PCM CONFIGURATION [MZR 1.5] .)	Go to the next step.
3	PERFORM PARAMETER RESET Connect the M-MDS to the DLC-2. (See M-MDS Connecting Procedure .) Switch the ignition to ON using a valid key. NOTE: Although the security light remains illuminated and DTC 15 is displayed after approx. 1 min , continue to perform the procedure as indicated. Verify that the keyless warning light illuminates for approx. 3 s , and then turns off. After the vehicle is identified, select "Body", then "Security", then "PATS function" from the initial screen of the IDS. Then, select an item from the screen menu. item Parameter Reset Perform the security access according to the directions on the M-MDS screen. Select replaced parts according to the directions on the M-MDS screen. If the instrument cluster is replaced: Select "IC". If the PCM is replaced: Select "PCM". CAUTION: At this time, do not Select other parts from the M-MDS menu. Verify that the PATS function menu is displayed again on the M-MDS screen.	Go to the next step.
4	CLEAR IGNITION KEY ID NUMBERS Select "Ignition Key Code Erase and Program" from the M-MDS screen menu. Clear the ignition key ID number according to the directions on the M-MDS.	Go to the next step.
5	PERFORM IGNITION KEY ID NUMBER PROGRAMMING Program two keys according to the directions on the M-MDS. After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Finish (this menu)". Switch the ignition to off. Switch the ignition to ON. Verify that the security light illuminates for approx. 3 s , and then turns off. Switch the ignition to off. Disconnect the M-MDS from the DLC-2.	Go to the next step.
6	VERIFY PROGRAMMING IS PERFORMED CORRECTLY Verify that the engine can be started with all the keys. Can the engine be started?	Yes	Procedure is completed
6		No	Perform the corresponding DTC inspection to repair the malfunctioning part.
