Door Lock Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the console panel. (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the screws.

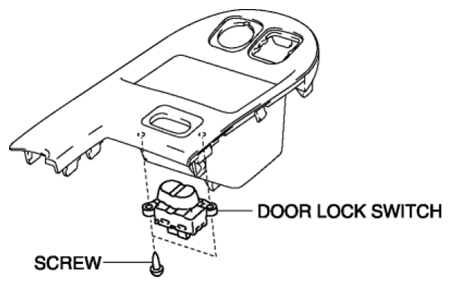

    Fig 1: Identifying Door Lock Switch And Screw
    G08108030
  4. Disconnect the door lock switch connector.
  5. Install in the reverse order of removal.
