Connector End Views - Power Systems

POWER SYSTEMS CONNECTOR REFERENCE

Connector End Views

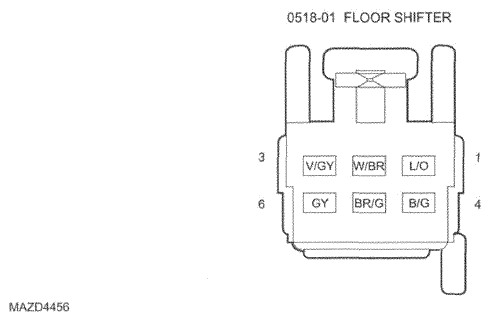

G07435944

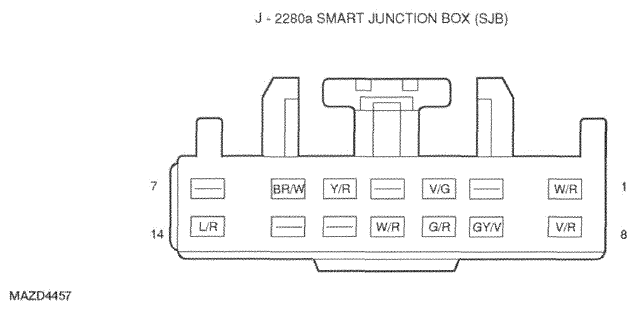

G07435945

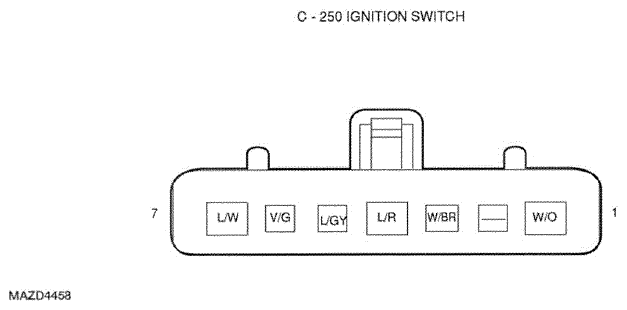

G07435946

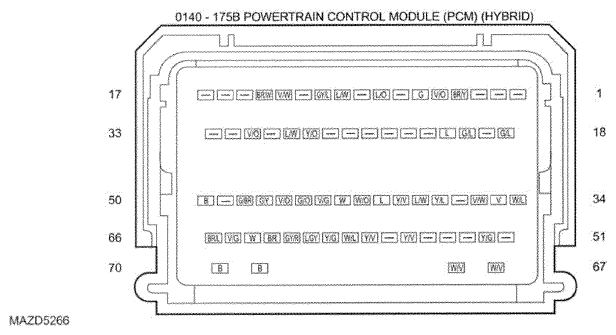

G07435947

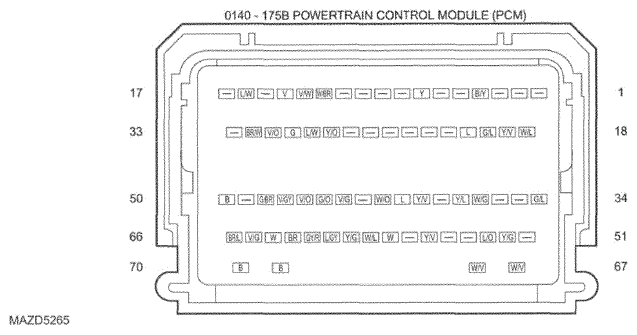

G07435948
