Liftgate Release Switch - Liftgate Glass Removal/Installation

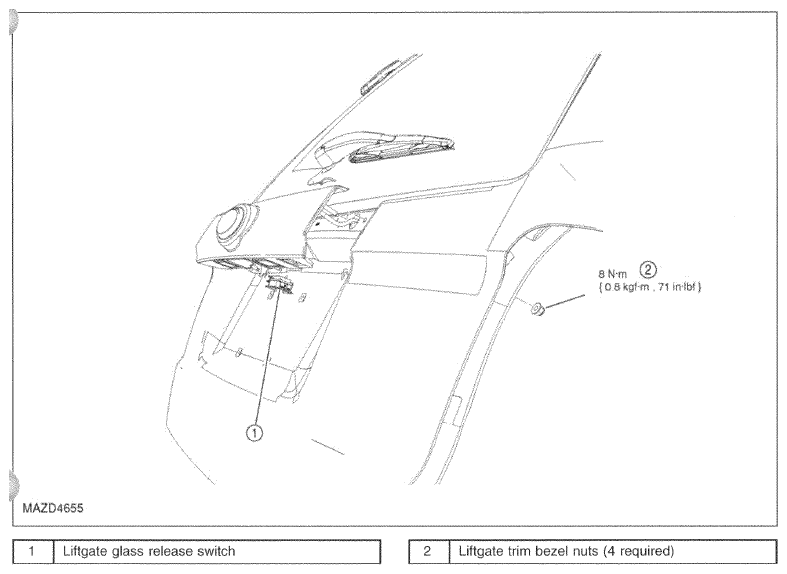

Fig 1: Liftgate Release Switch - Liftgate Glass Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. Remove the liftgate trim panel. See LIFTGATE TRIM PANEL REMOVAL/INSTALLATION .
2. Remove the 4 liftgate trim bezel nuts and remove the bezel from the liftgate.
   • Disconnect the liftgate glass release electrical connector.
   • Using an appropriate tool, press the tabs and remove the liftgate glass release switch.
   • To install, tighten to 8 N.m {0.8 kgf.m, 71 in.lbf}.
3. To install, reverse the removal procedure.
