Steering Column - Component View

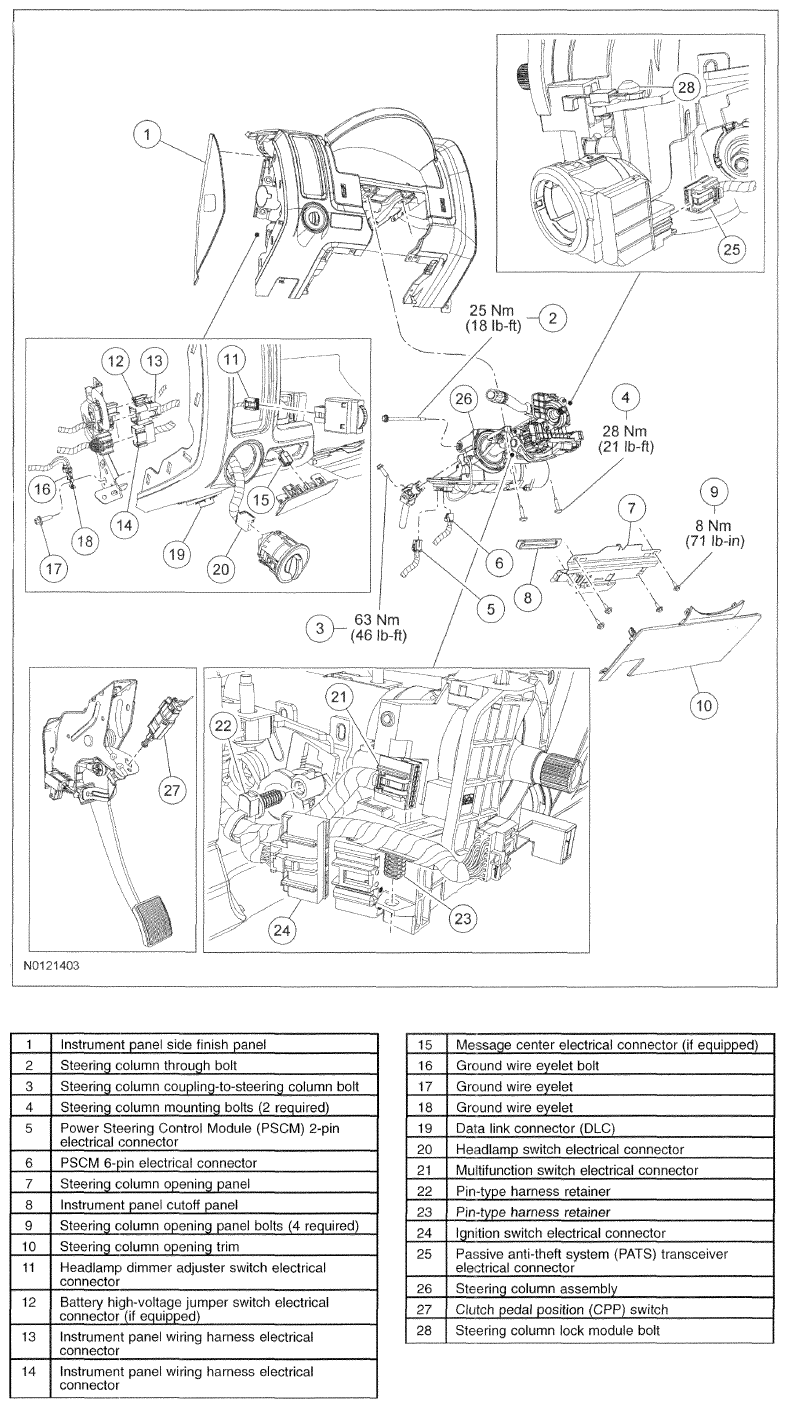

Fig 1: Steering Column Replacement Components With Torque Specifications

G07435784

Courtesy of MAZDA MOTORS CORP.
