Trunk Compartment Light Switch Inspection

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The trunk compartment light switch is built into the trunk lock.
  1. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  2. Disconnect the trunk compartment light switch connector.
  3. Verify that the continuity between the trunk compartment light switch terminals is as indicated in the table.
    • If not as indicated in the table, replace the trunk lock.

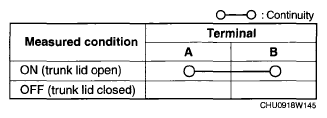

    Fig 1: Trunk Compartment Light Switch Continuity Chart
    G05986240Courtesy of MAZDA MOTORS CORP.
    Fig 2: Identifying Trunk Compartment Light Switch Connector
    G05986241Courtesy of MAZDA MOTORS CORP.
