Rear Auto Leveling Sensor Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Jack up the vehicle and remove the wheel and tire.
  3. Disconnect the connector.
  4. Remove the bolts and nut, then remove the rear auto leveling sensor.
  5. Install in the reverse order of removal.

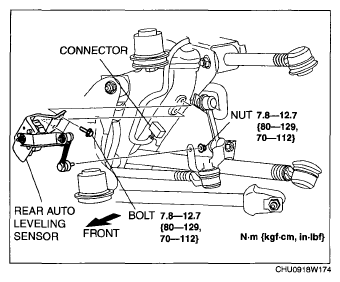

Fig 1: Rear Auto Leveling Sensor And Connector With Torque Specifications
G05986200Courtesy of MAZDA MOTORS CORP.
