Rear Auto Leveling Sensor Inspection

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect three 1.5 V dry cell batteries in a series.
  2. Connect the positive pole of the battery to auto leveling sensor terminal A, and the negative pole to terminal D, then apply voltage of 4.5 V between terminals A and D.
  3. Connect the tester as shown in the figure.
  4. Verify that the voltage fluctuates linearly in the 0.5 to 4.1 V range while the links are moved up and down slowly.

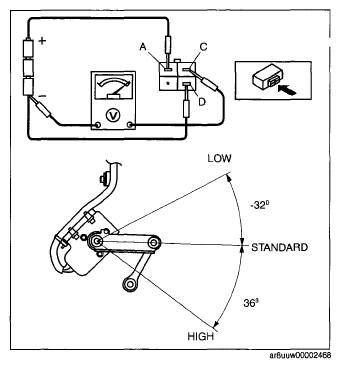

    Fig 1: Identifying Rear Auto Leveling Sensor Operation
    G05986201Courtesy of MAZDA MOTORS CORP.
    • If not indicated in the graph, replace the rear auto leveling sensor.

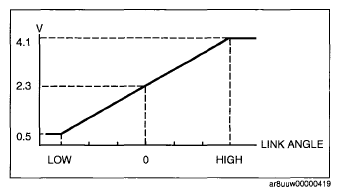

    Fig 2: Rear Auto Leveling Sensor Graph
    G05986202Courtesy of MAZDA MOTORS CORP.
