Map Light Inspection

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
  2. Verify that the continuity between the map light terminals is as indicated in the table.
    • If not as indicated in the table, replace the map light.

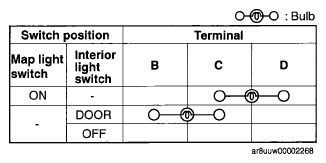

    Fig 1: Map Light Continuity Chart
    G05986232Courtesy of MAZDA MOTORS CORP.

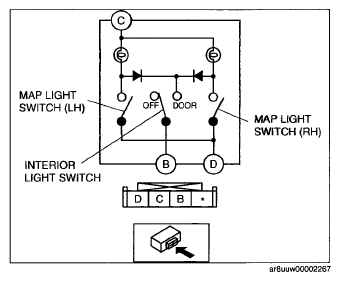

    Fig 2: Identifying Map Light Connector
    G05986233Courtesy of MAZDA MOTORS CORP.
