Headlight Switch

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

If not as indicated in the table, replace the light switch.

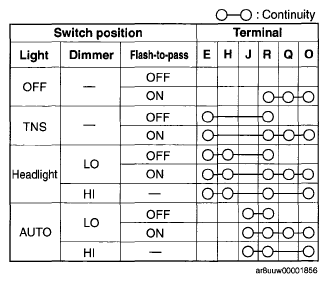

Fig 1: Headlight Switch Continuity Chart

Courtesy of MAZDA MOTORS CORP.

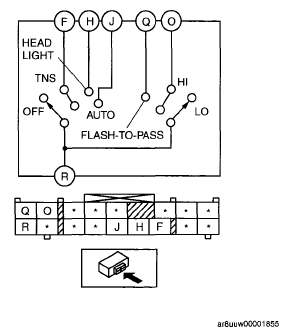

Fig 2: Identifying Headlight Switch Connector

Courtesy of MAZDA MOTORS CORP.
