Interior Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lens. (See LENS REMOVAL NOTE .)
  3. Remove the interior light bulb.
  4. Remove the interior light. (See INTERIOR LIGHT REMOVAL NOTE .)
  5. Disconnect the connector.
  6. Install in the reverse order of removal.

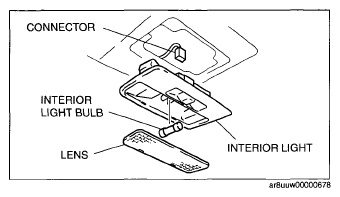

Fig 1: Identifying Interior Light, Lens And Bulb
G05986234Courtesy of MAZDA MOTORS CORP.
