Vehicles With Advanced Keyless System

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the screw.
  4. Remove the lens.
  5. Remove the ignition key illumination bulb.
  6. Install in the reverse order of removal.

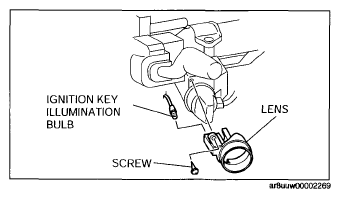

Fig 1: Identifying Ignition Key Illumination Bulb And Lens
G05986245Courtesy of MAZDA MOTORS CORP.
