Back-Up Light Switch Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [P66M-D] .)

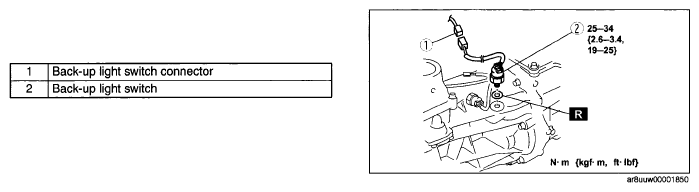

    Fig 1: Back-Up Light Switch And Connector W with Torque Specifications
    G05986204Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
