Auto Leveling Control Module Removal/Installation
WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

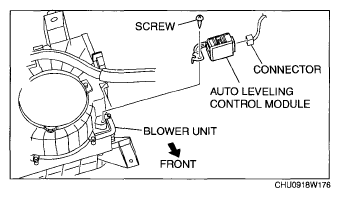

- Disconnect the negative battery cable.
- Disconnect the connector.
- Remove the screw and then remove the auto leveling control module.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
