On-Board Diagnostic [Engine Control System]
>>
On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram

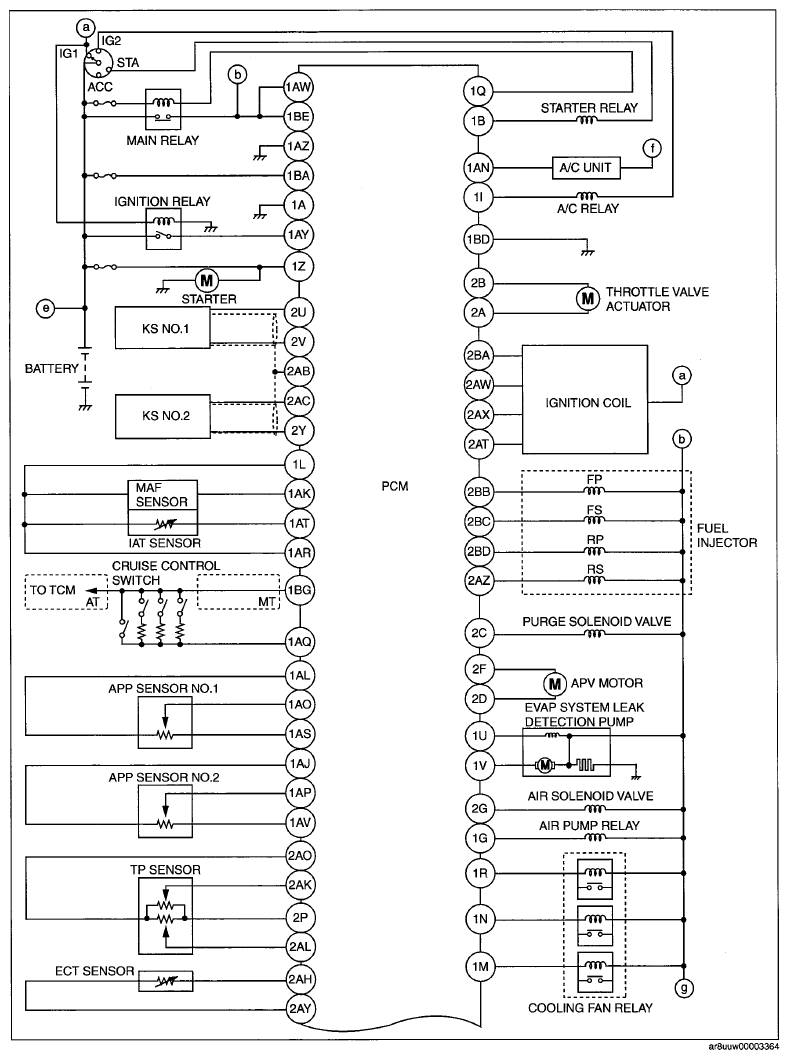

Fig 1: On-Board Diagnostic Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

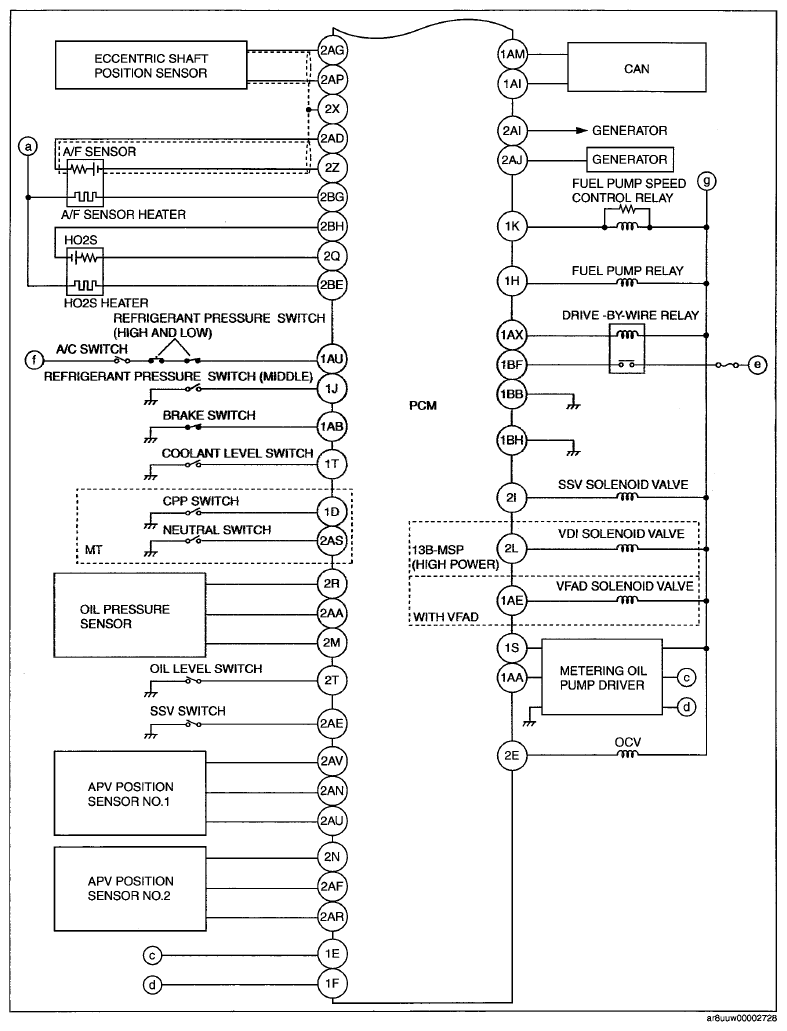

Fig 2: On-Board Diagnostic Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
