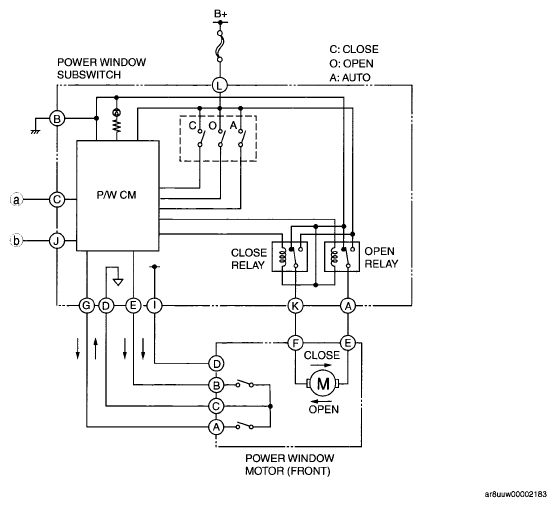

Home >> Mazda >> 2011 >> RX-8 R3, 1.3 2 >> Repair and Diagnosis >> Body & Frame >> Windows >> Symptom Troubleshooting [Power Window System) >> Power Window System Wiring Diagram Power Window System (With Exterior Open/Close Function) >> Power Window Subswitch
