Auto Light/Wiper Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

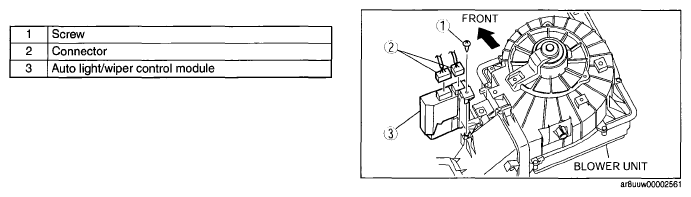

    Fig 1: Identifying Auto Light/Wiper Control Module Components
    G05986227Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
