DTC P1101: MAF Sensor Out Of Self-Test Range: Notes

DTC P1101 CHART (MZI-3.7)

DTC P1101 MAF sensor out of self-test range
DETECTION CONDITION
  • The MAF sensor circuit is monitored by the PCM for an out of range air flow (or voltage) input. If, during KOEO, the air flow voltage signal is more than 0.27 V with the ignition switch in the ON position (Engine off). Likewise, the test fails if the airflow voltage signal is not within 0.46 to 2.44 V with the ignition switch in the ON position (Engine running) (KOER).
POSSIBLE CAUSE
  • MAF sensor connector or terminal malfunction
  • PCM connector or terminal malfunction
  • Open circuit wiring harness between MAF sensor terminal B (wiring harness-side) and body ground
  • Open circuit wiring harness between MAF sensor terminal C (wiring harness-side) and PCM terminal 1 AN (wiring harness-side)
  • MAF sensor malfunction
  • Low battery charge
  • PCM malfunction

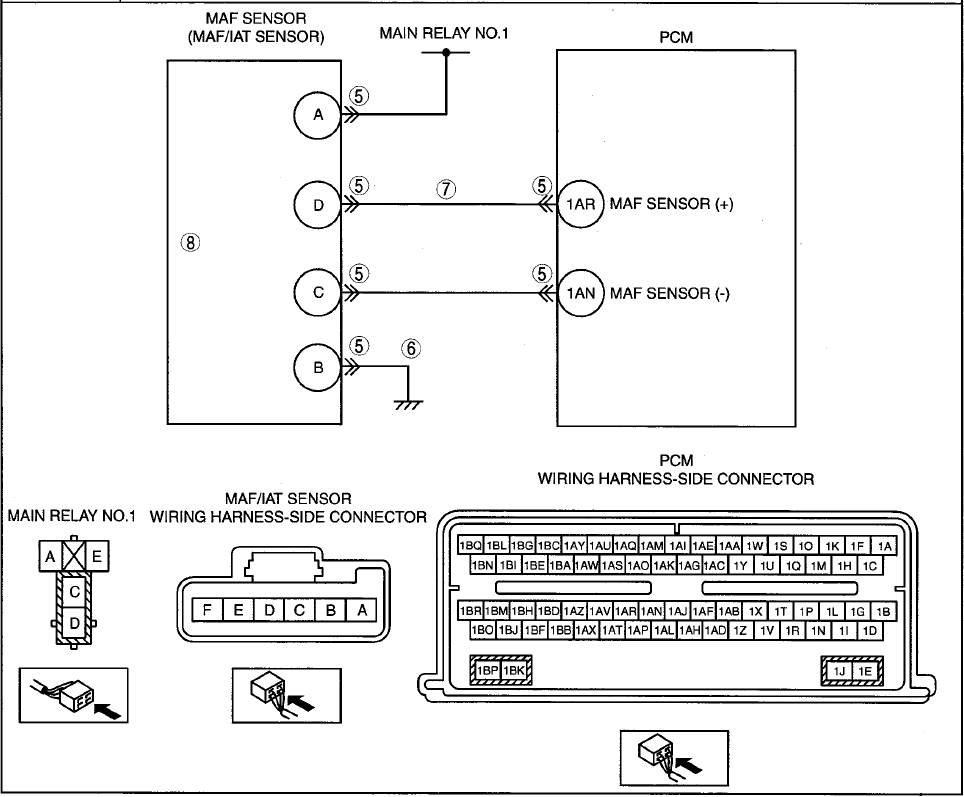

G00511594Courtesy of MAZDA MOTORS CORP.
