DTC P0603: Pcm Keep Alive Memory (KAM) Error: Notes

DTC P0603 CHART (MZI-3.7)

DTC P0603 PCM keep alive memory (KAM) error
DETECTION CONDITION
  • Indicates the PCM has experienced an internal memory concern. However, there are external items that can cause this DTC.
POSSIBLE CAUSE
  • Battery terminal corrosion
  • Loose battery connection
  • Connector or terminal malfunction
  • Open circuit between battery positive terminal and PCM terminal 1 V
  • Reprogramming

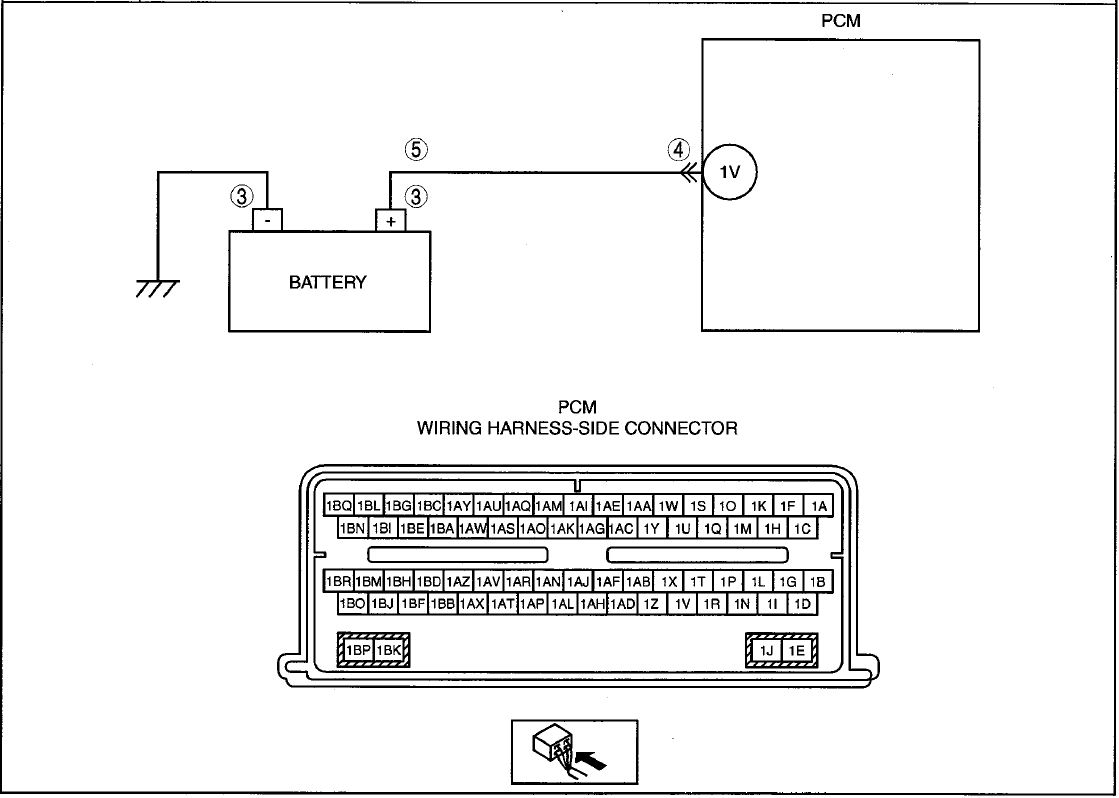

G00511586Courtesy of MAZDA MOTORS CORP.
