DTC P0349: CMP Sensor (LH) Circuit Intermittent: Notes

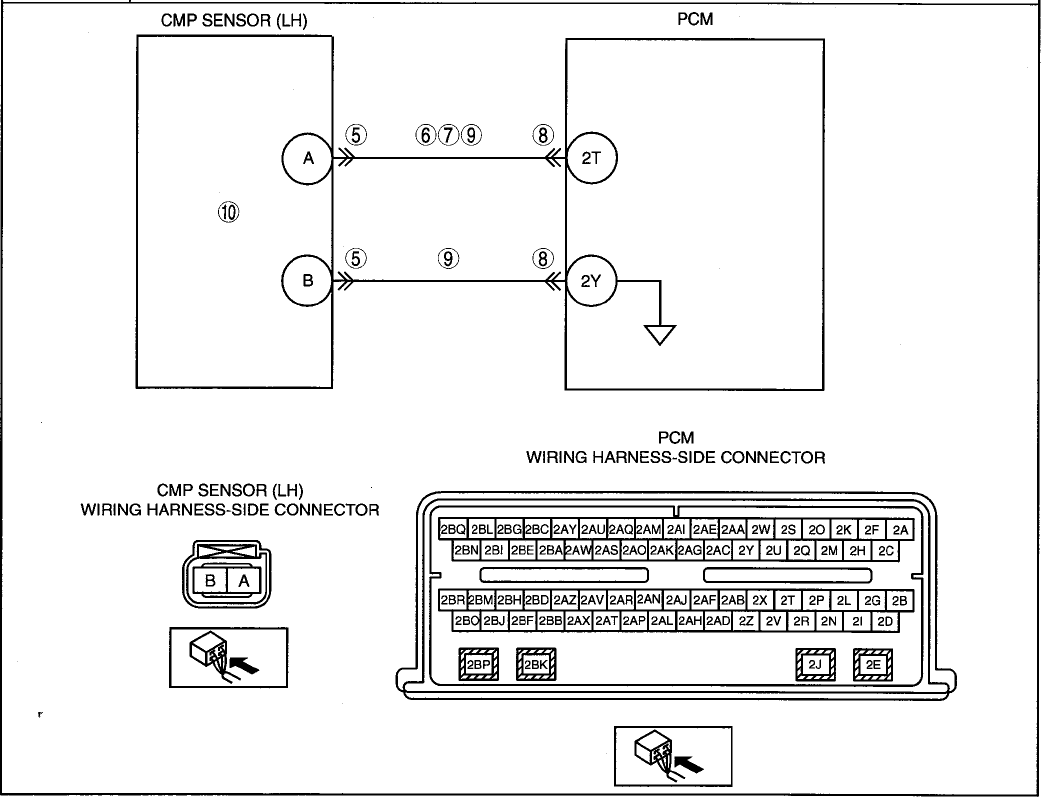

DTC P0349 CHART (MZI-3.7)

DTC P0349	CMP sensor (LH) circuit intermittent
DETECTION CONDITION	The test fails when the PCM detects an intermittent signal from the CMP sensor (LH).
POSSIBLE CAUSE	Connector or terminal malfunction Short to power supply between CMP sensor (LH) terminal A and PCM terminal 2T Short to ground circuit between CMP sensor (LH) terminal A and PCM terminal 2T Open circuit between CMP sensor (LH) terminal A and PCM terminal 2T Open circuit between CMP sensor (LH) terminal B and PCM terminal 2Y CMP sensor (LH) malfunction Sensor shielding malfunction
Courtesy of MAZDA MOTORS CORP.
