DTC P0345: CMP Sensor (LH) Circuit: Notes

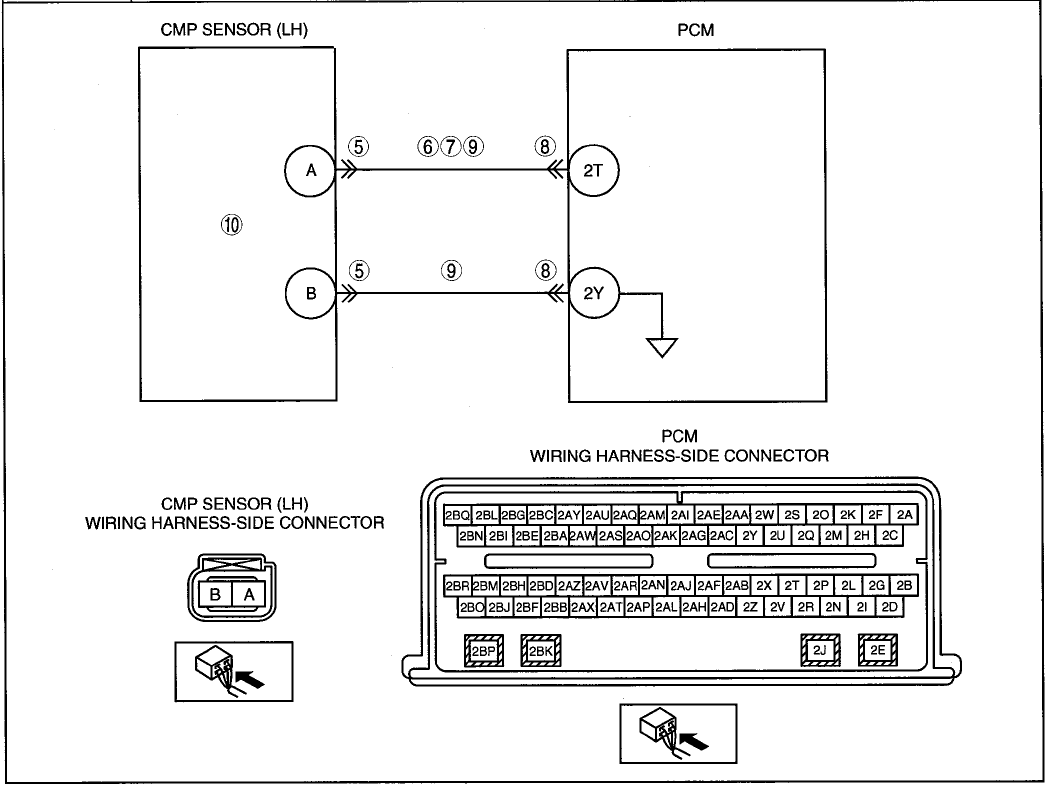

DTC P0345 CHART (MZI-3.7)

DTC P0345	CMP sensor (LH) circuit
DETECTION CONDITION	The test fails when the PCM can no longer detect the signal from the CMP sensor (LH).
POSSIBLE CAUSE	Connector or terminal malfunction Short to power supply between CMP sensor (LH) terminal A and PCM terminal 2T Short to ground circuit between CMP sensor (LH) terminal A and PCM terminal 2T Open circuit between CMP sensor (LH) terminal A and PCM terminal 2T Open circuit between CMP sensor (LH) terminal B and PCM terminal 2Y CMP sensor (LH) malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
