DTC P0341: CMP Sensor (RH) Circuit-Range/Performance: Notes

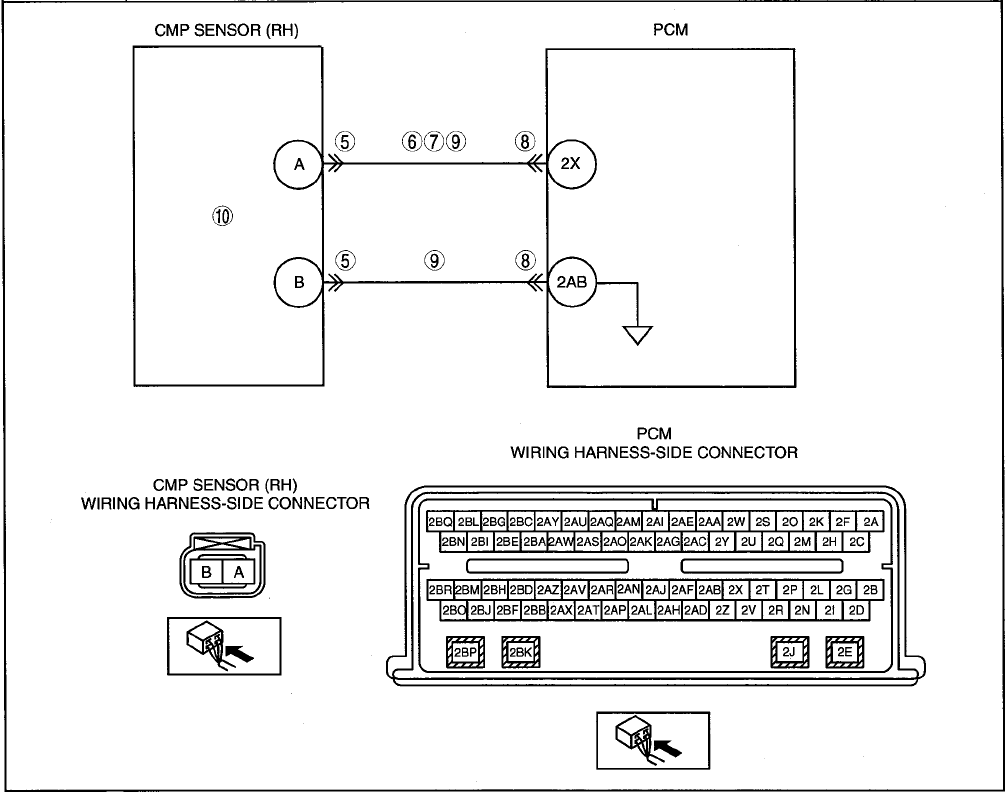

DTC P0341 CHART (MZI-3.7)
| DTC P0341 |
CMP sensor (RH) circuit-range/performance |
| DETECTION CONDITION |
- The PCM monitors the CMP sensor (RH) for a noisy signal.
|
| POSSIBLE CAUSE |
- Radio frequency interference/electromagnetic interference (RFI/EMI)
- Camshaft phaser and sprocket malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
