System Wiring Diagram [Position Memory Control System]

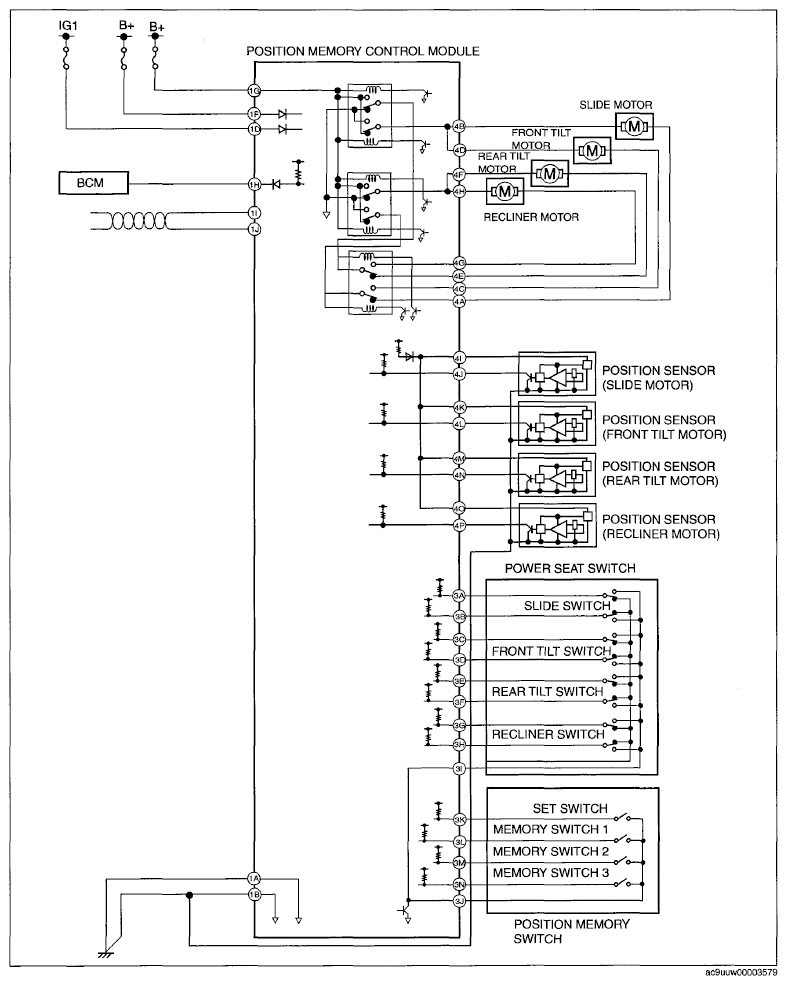

Fig 1: System Wiring Diagram (Position Memory Control System)

G06729559

Courtesy of MAZDA MOTORS CORP.
