DTC U3003:16 [Position Memory Control System]: Notes

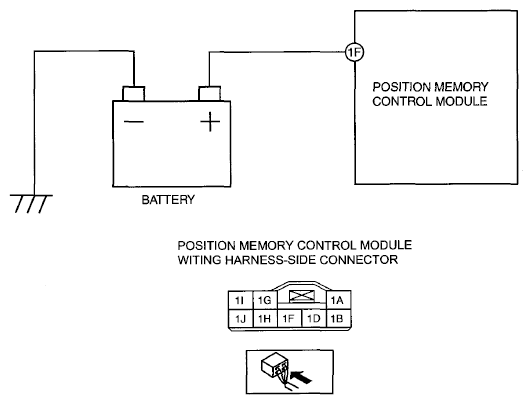

DTC U3003:16 CHART (POSITION MEMORY CONTROL SYSTEM)

DTC U3003:16	Battery voltage low
DETECTION CONDITION	Voltage from battery power supply remains at 9 V or less for 5 s or more
POSSIBLE CAUSE	Battery malfunction Position memory control module connector malfunction Open circuit in wiring harness between position memory control module and battery Short to ground in wiring harness between position memory control module and battery Open circuit in wiring harness between battery and GND
Courtesy of MAZDA MOTORS CORP.
