DTC U0431:68 [Position Memory Control System]: Notes

DTC U0431:68 CHART (POSITION MEMORY CONTROL SYSTEM)

DTC U0431:68	Invalid data received from BCM "A"
DETECTION CONDITION	Invalid data received from BCM "A"

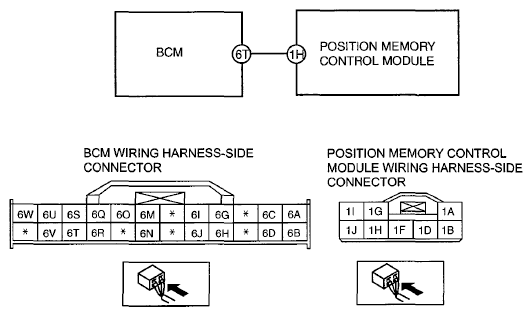

POSSIBLE CAUSE	BCM connector malfunction Position memory control module connector malfunction Open circuit in wiring harness between the following terminals: BCM terminal 6T-Position memory control module terminal 1H Short to ground in wiring harness between the following terminals: Position memory control module terminal 1H-body GND Position memory control module malfunction
Courtesy of MAZDA MOTORS CORP.
