Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and DSC HU/CM.
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Remove the brake pipe.

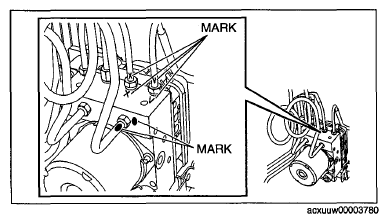

    Fig 1: Locating Brake Pipe And DSC HU/CM Alignment Mark
    G06725264Courtesy of MAZDA MOTORS CORP.
