Security Light: Not Illuminated, DTC B10E6:11/- [Immobilizer System (Advanced Keyless Entry And Push Button Start System)]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
B10E6:11 REFERENCE

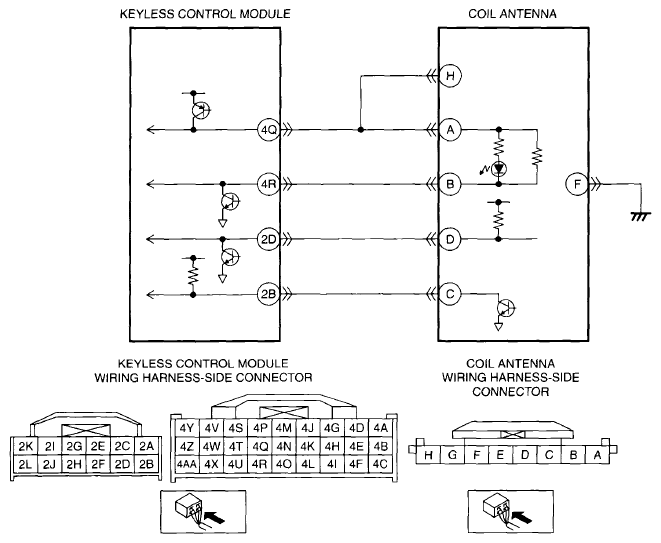

| DTC | Security light flashing pattern | - | Voltage less than the specification (2.2-6.5 V) is detected for 0.5 s while the coil antenna power supply circuit is active | |
|---|---|---|---|---|
| M-MDS display | Keyless control module | B10E6:11 | ||
| PCM | - | |||
| POSSIBLE CAUSE |
|
|||
