Security Light: 11, DTC: B10D9:87/P1260:00 [Immobilizer System (Advanced Keyless Entry And Push Button Start System)]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

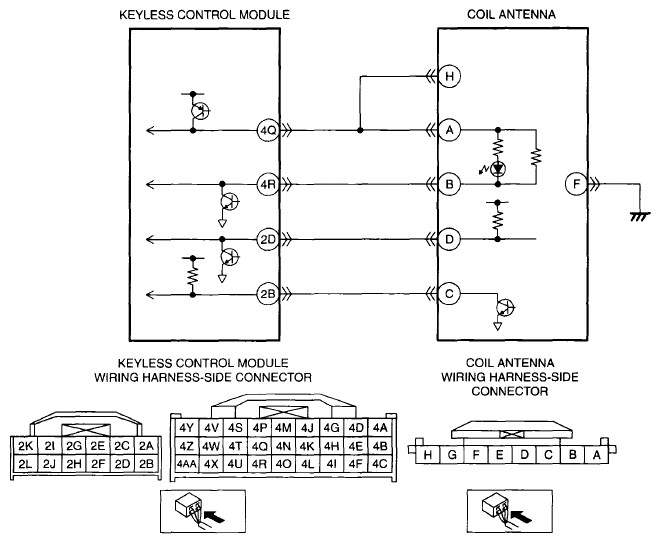

B10D9:87/P1260:00 REFERENCE
| DTC |
Security light flashing pattern |
11 |
No detected communication with coil antenna |
| M-MDS display |
Keyless control module |
B10D9:87 |
| PCM |
P1260:00 |
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Open circuit in coil antenna ground circuit
- Short to ground in coil antenna power supply circuit
- Open circuit in coil antenna power supply circuit
- Open circuit in wiring harness between coil antenna terminal B and keyless control module terminal 4R
- Open circuit in wiring harness between coil antenna terminal D and keyless control module terminal 2D
- Open circuit in wiring harness between coil antenna terminal C and keyless control module terminal 2B
- Coil antenna malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
