Front Axle Location Index

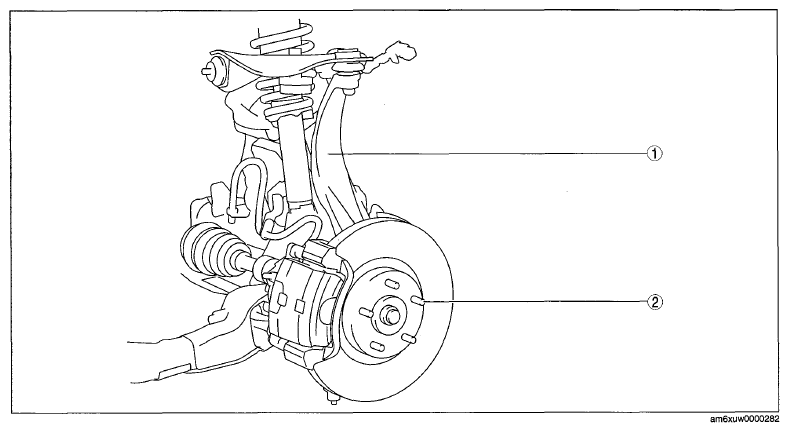

Fig 1: Front Axle Components Location
G07620966Courtesy of MAZDA MOTORS CORP.
FRONT AXLE REFERENCE CHART

1 Wheel hub, steering knuckle
(See WHEEL HUB, STEERING KNUCKLE INSPECTION .)
(See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION .)
(See WHEEL HUB, STEERING KNUCKLE DISASSEMBLY/ASSEMBLY .)
2 Hub bolt
(See FRONT WHEEL HUB BOLT REPLACEMENT .)
