6 s Touring Plus
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Symptom Troubleshooting [Power Window Systems - Without Exterior Open Function)
>>
Power Window System Wiring Diagram [Power Window Systems (Without Exterior Open Function)]
>>
Power Window Main Switch
Power Window Main Switch

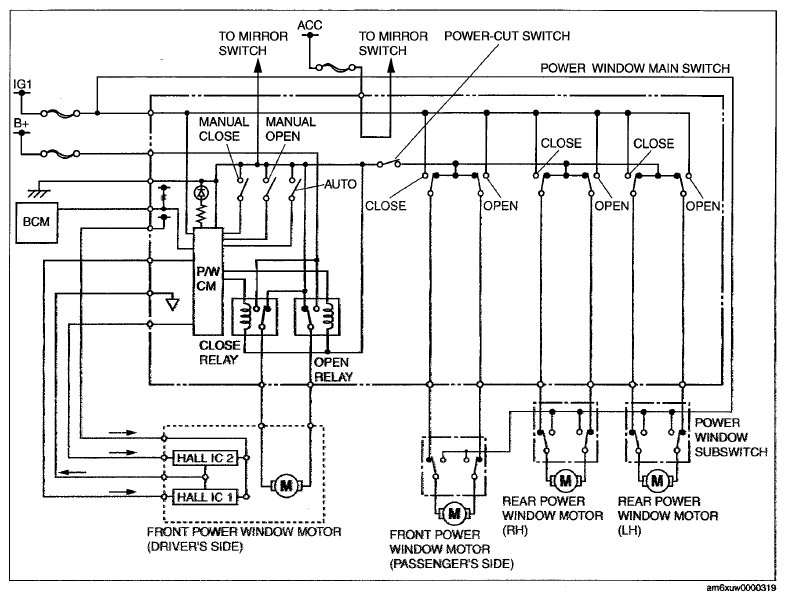

Fig 1: Power Window System Wiring Diagram [Power Window Systems (Without Exterior Open Function)]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
