Vehicle Exterior, Rear

  1. Disconnect the negative battery cable.
  2. Remove the nuts.
  3. Disconnect the connector.
  4. Remove the keyless antenna.
  5. Install in the reverse order of removal.

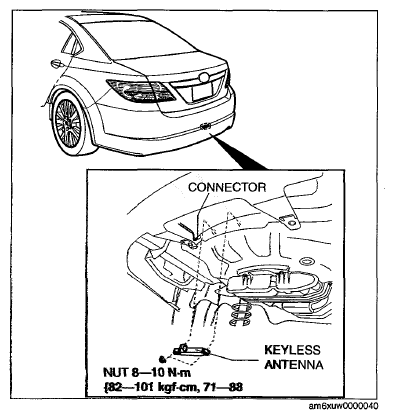

Fig 1: Keyless Antenna, Connector And Nut With Torque Specification (Vehicle Exterior, Rear)
G07622175Courtesy of MAZDA MOTORS CORP.
